Tail Lock Handle by Young Kyun Koh from korea

L-type handle was used as basic form of door handle thus far due to its excellence in functionality and usability.

Then, Why can't we incarnate a new turn of locking hardware more conveniently only using key through L-type on basic forms.

Under these conditions, we intended this as an opportunity of developing a real product, a simple, but important functional object.

We intended this Tail Lock Handle to control Locking hardware from Handle tail, by applying Flexible spring cable causing it to rotate along the curved surface of lever from the center of the L-type handle.

[Feature]
Composition of new features optimized for the L-type handles
Unnecessariness of the additional operation for key hole application
Economic benefits through speedy assembly
Offer of providing series of handles for windows and doors
Versatile interior door lever handle
Great ease of assembly
Simplify and reduce number of individual components

Applying selectional key modular to every doors and windows by the usage of its lock funcitons available

Offering users aesthetically coherent handle above in the field of architectural interior

Working the goal of production enterprises, excellence in industrial manufacturing procedures to eco-compatible process additionally

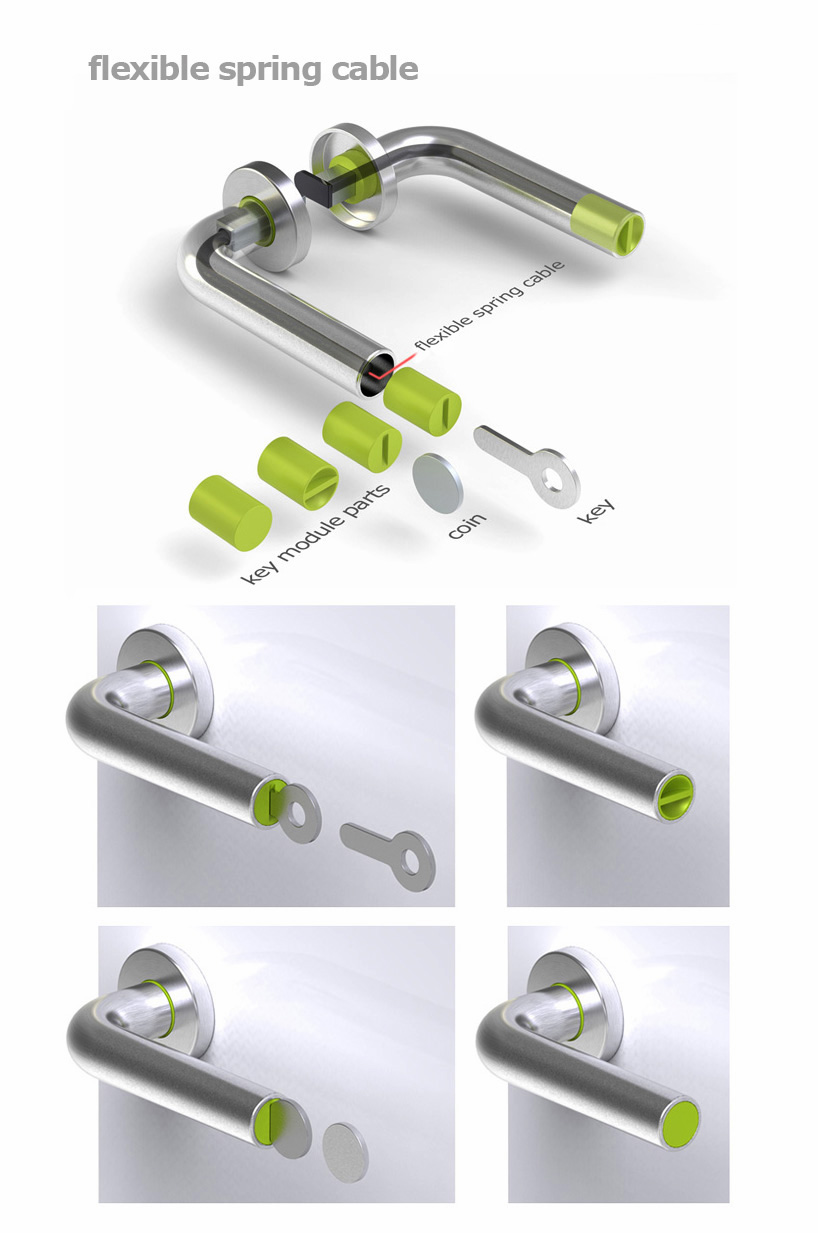

[Flexible spring cable Mechanism]
Tail lock handle is possible to operate additional existing lock hardware by applying the Flexible spring cable in the center of L-type handles level bar in L-type handle

[Key Unit Parts]
Depending on the usage of the user, tail lock handle consists of funcitonal parts; Key, coin, Fingers as working parts, and lock features; handle tail cap parts without performances

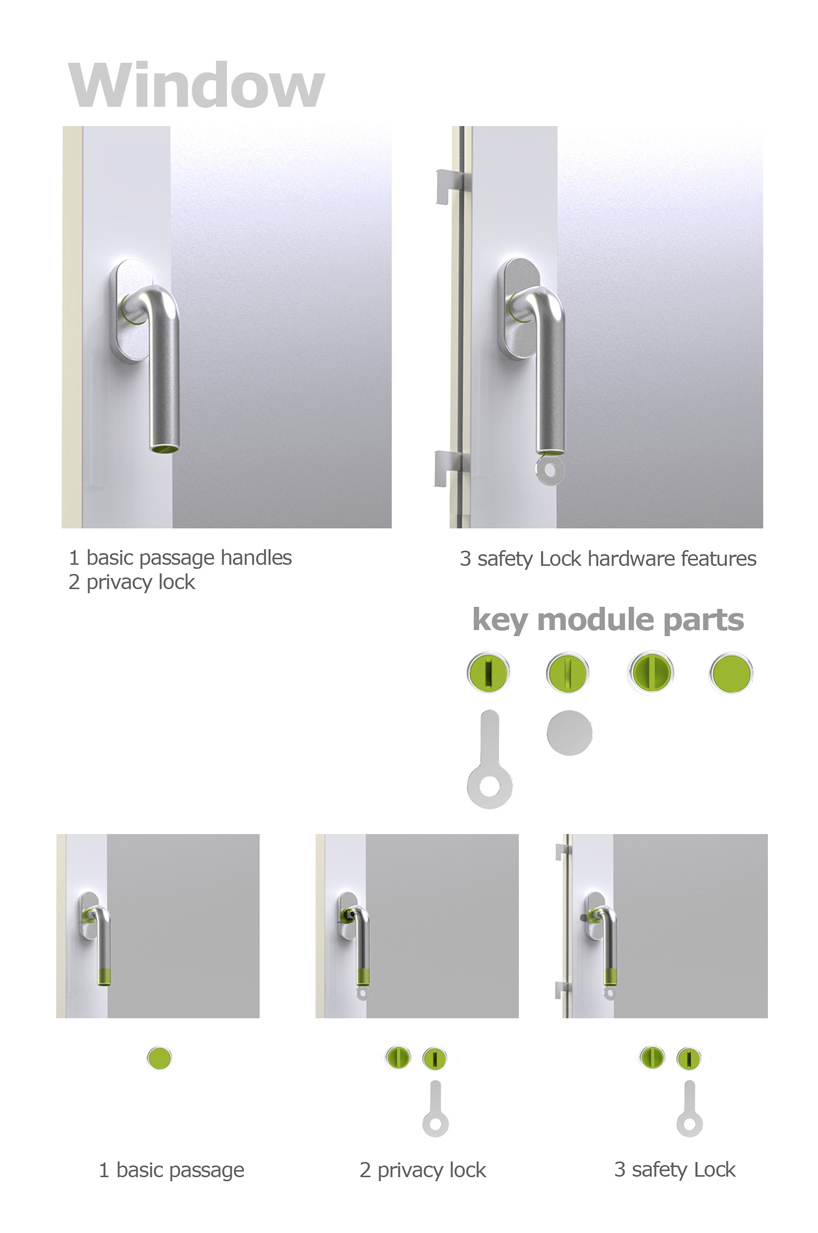

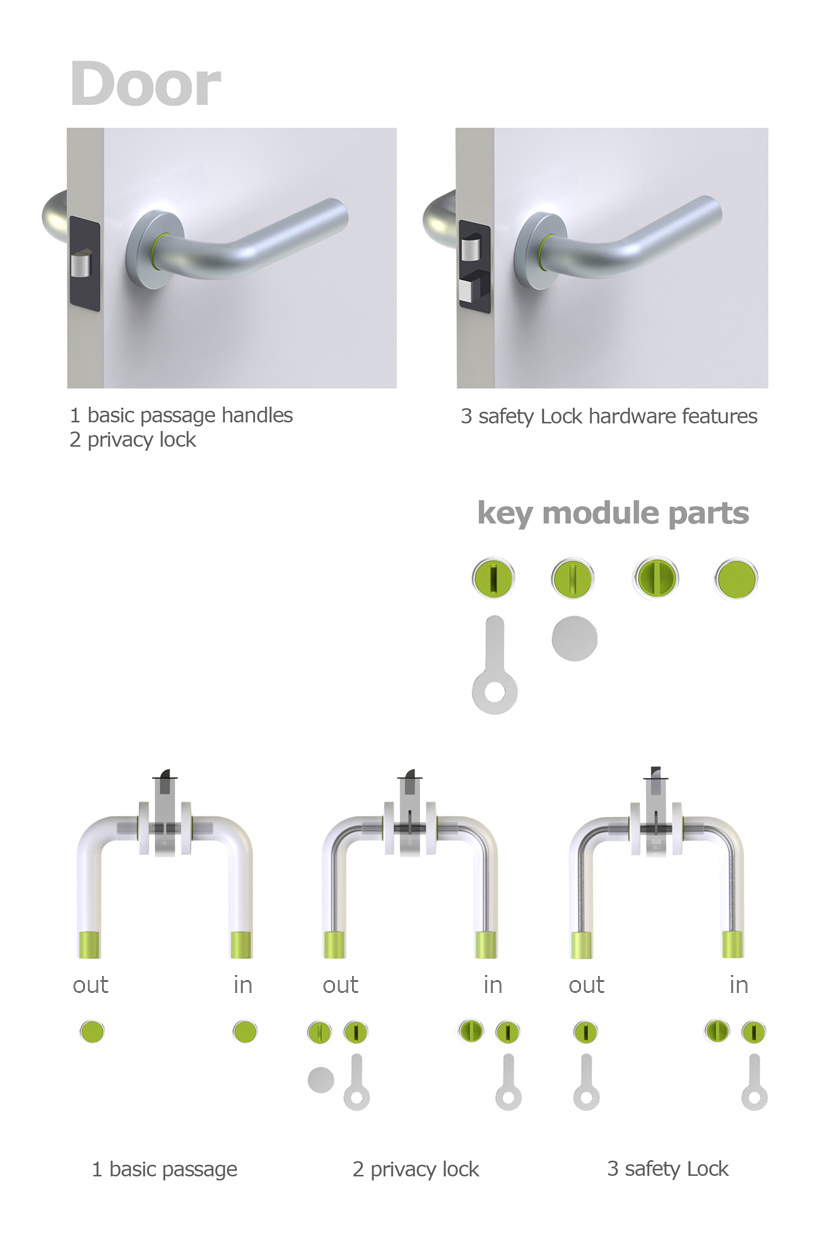

[How to Lock?]
1st basic passage handles without locking function; opening and closing (cap + cap)

2st Privacy lock function with lever lock feature by turning up or down the lever to lock
(Flexible spring cable = coin + Fingers, Key + Fingers)

3st along with setted secondary safety Lock hardware features, 2st lever lock working as safety lock feature (Lock hardware + Flexible spring cable = Key + Fingers, Key + Key)

[Utilization]
Setting both two faces of doors and windows used for every buissness and residential buildings itselves

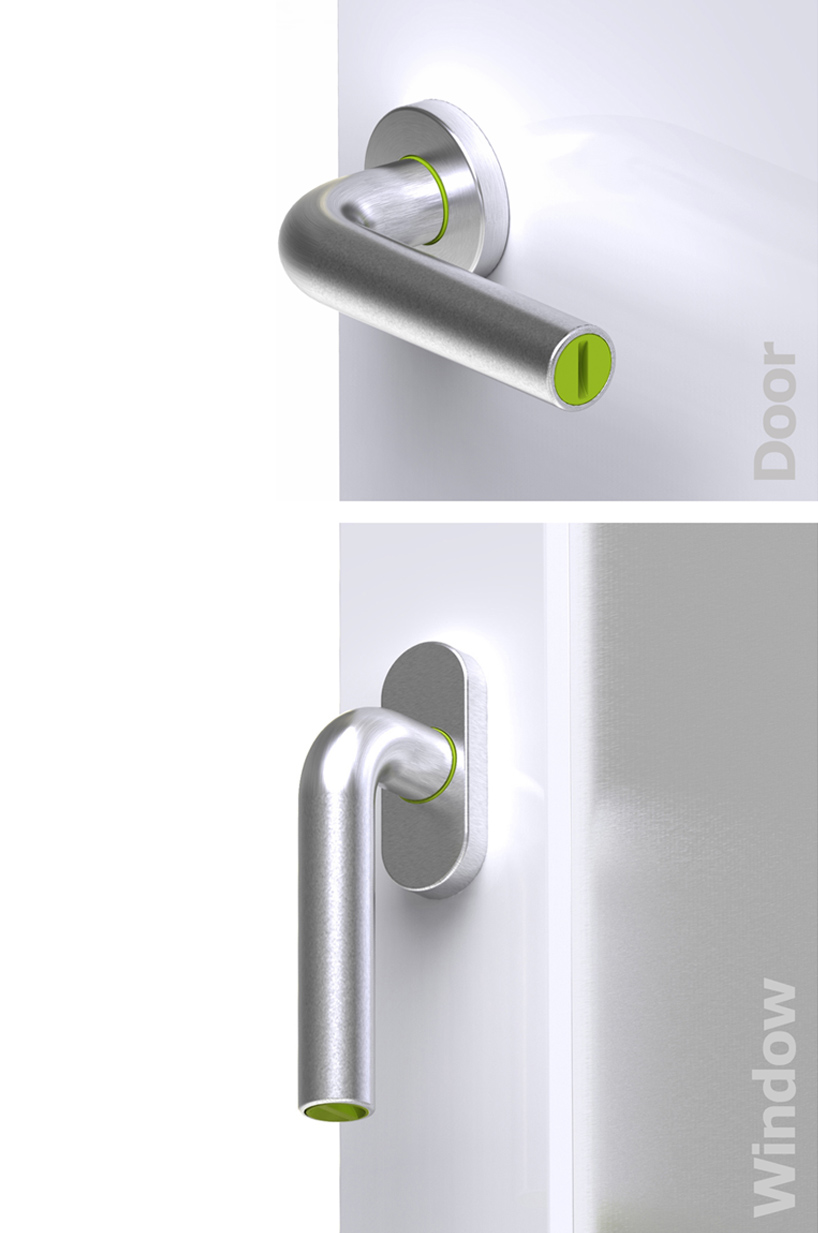

Handles, available to be on left and right versions
Unification available of a series of windows, doors and handles

[Materials]
Steel & Aluminum
