Porto

Porto by diogo frias riobom from portugal

designer's own words:

the shape of the handle is based on a circle wish is one of the most important functionalist shapes. the dimensions were calculated and defined by the diameter of the central body of the handle. the drawings speak for themselves. the prototypes allowed us to test and reach the right dimension. on the door, you'll only see one body of the handle, with no additional parts or screws.

Render of the handle

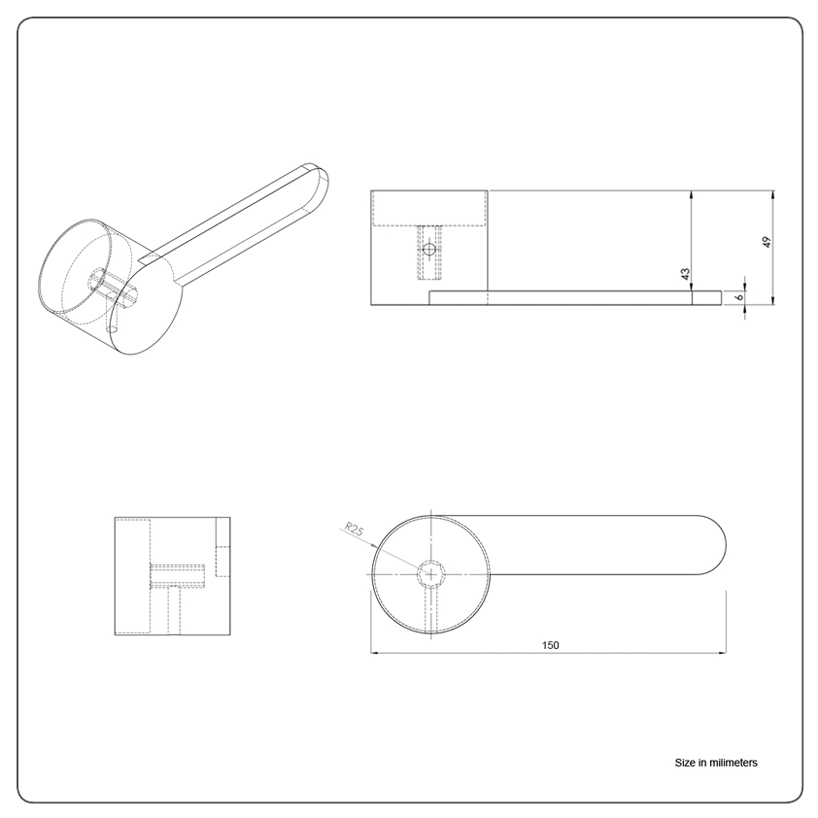

copy_2483_2.jpg Dimensions

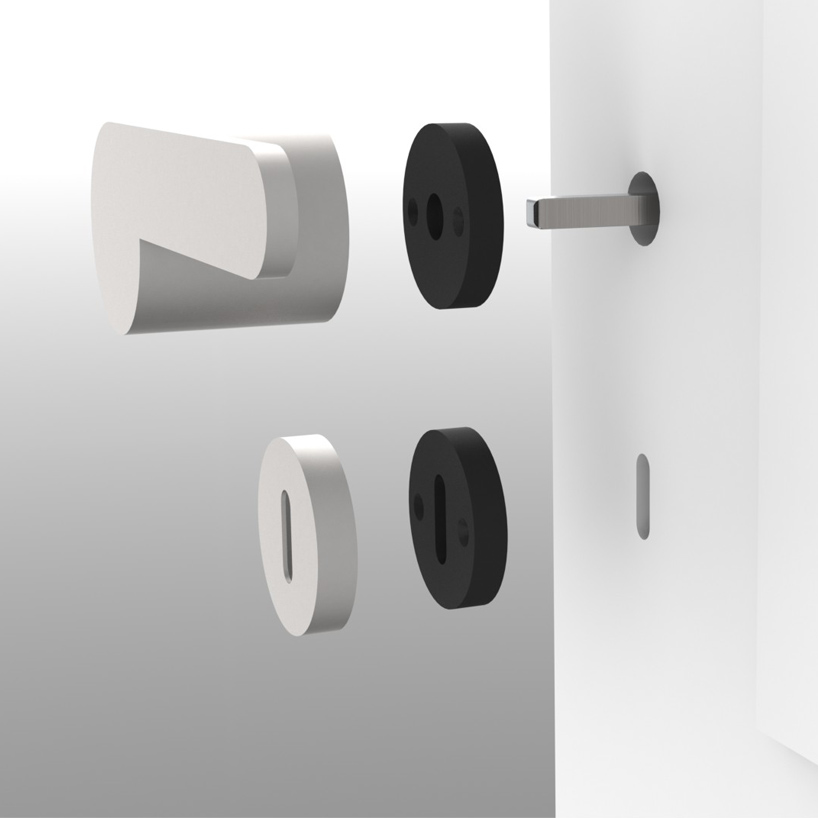

copy_2112_3.jpg Exploded view with all components

copy_210_4.jpg Prototyping

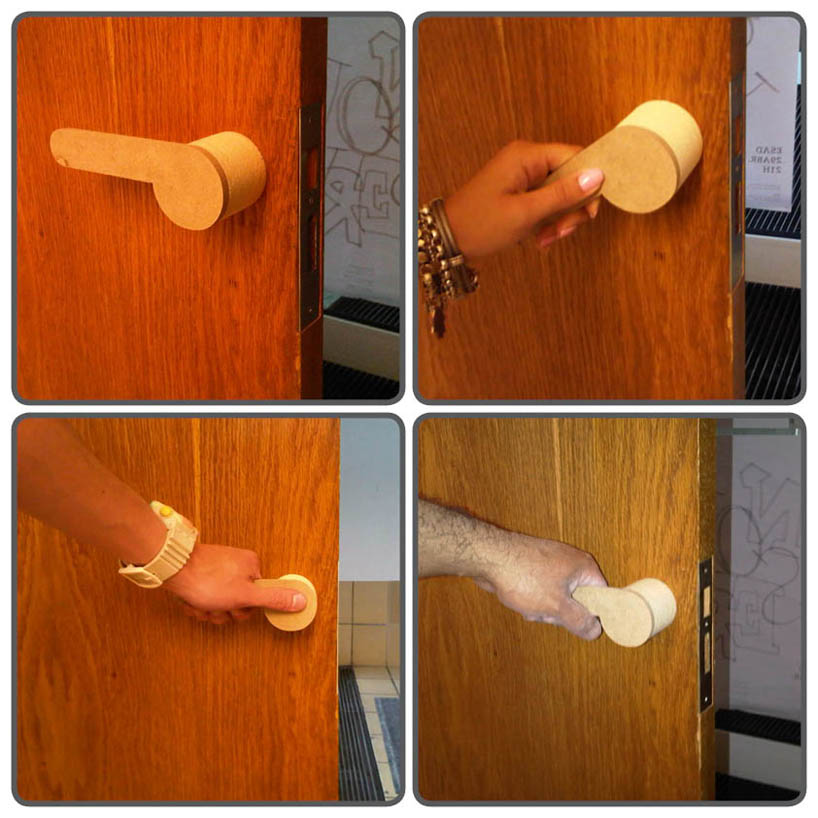

copy_136_5.jpg Testing with diferent sizes of hands
