Patile_door handle

Patile_door handle by flavio teixeira from portugal

designer's own words:

patile is a handle that combines the stiffness of stainless steel with the softness of abs polymer. the concept focuses on a tab, where the hand grasps the handle, it will adapt to the user's hand and provide a soft touch, is the point of interface between the user and the door. an insert that incorporates the structural body shiny stainless steel, this structural rigid body grabs the door, takes the form of a semi-sphere in accordance with the smoothness of the abs, with no straight lines or sharp corners.

poster

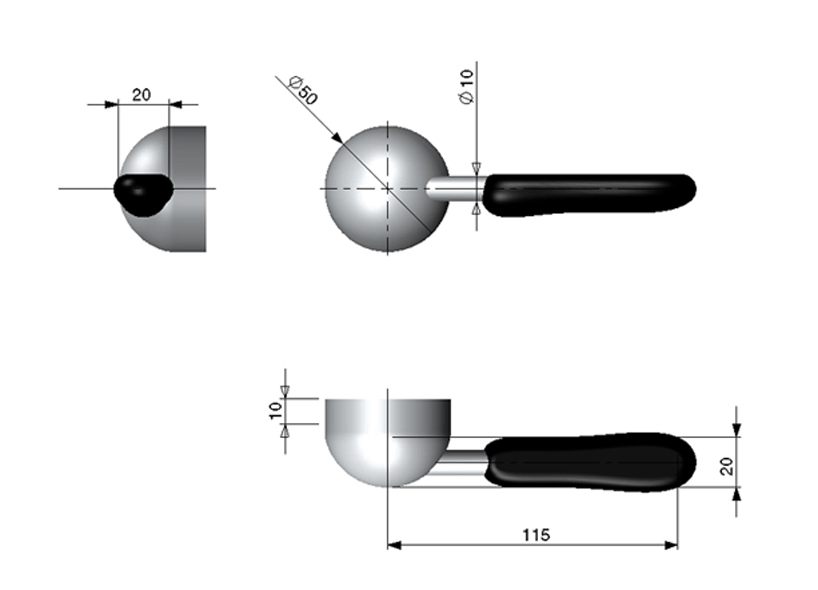

cartaz_7.gif technical drawing

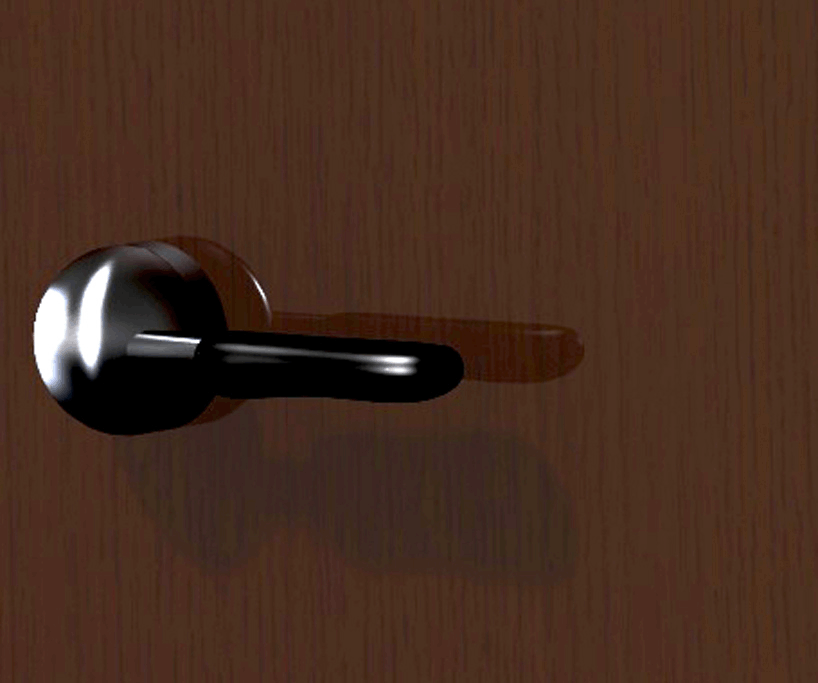

cartaz_s.gif view simulation

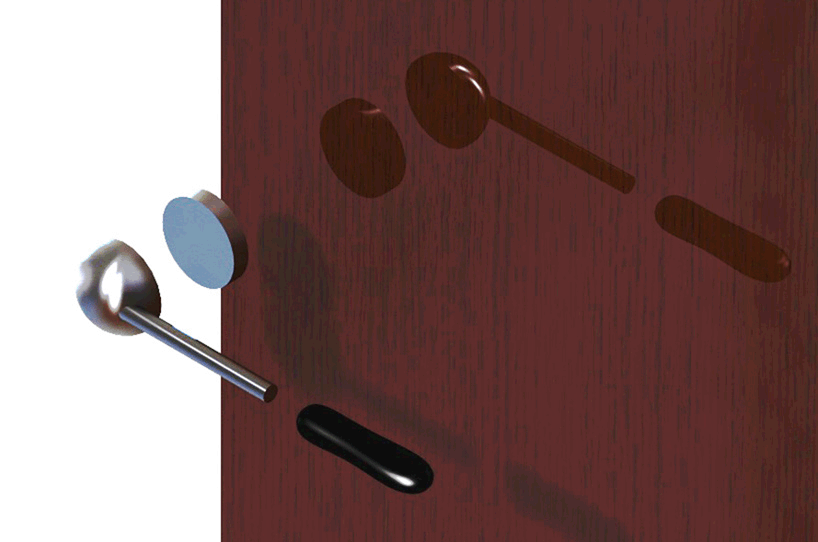

cartaz_2.gif exploded view

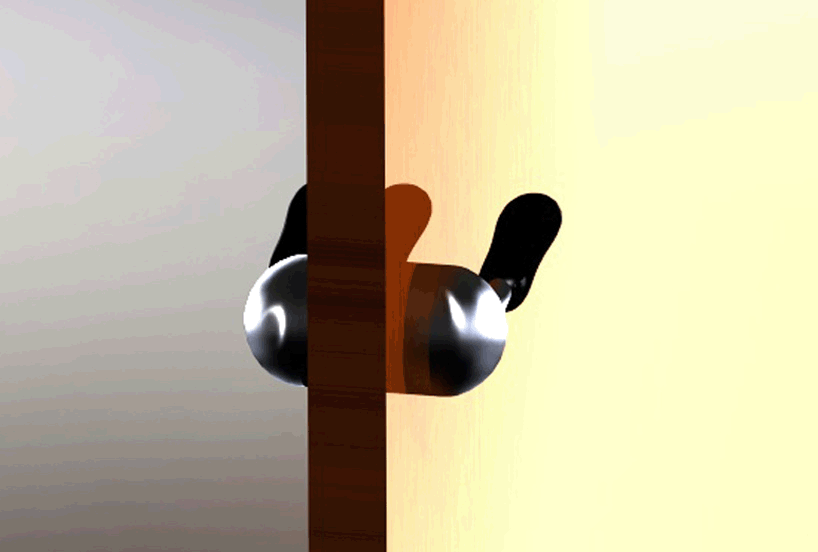

cartaz_4.gif view simulation

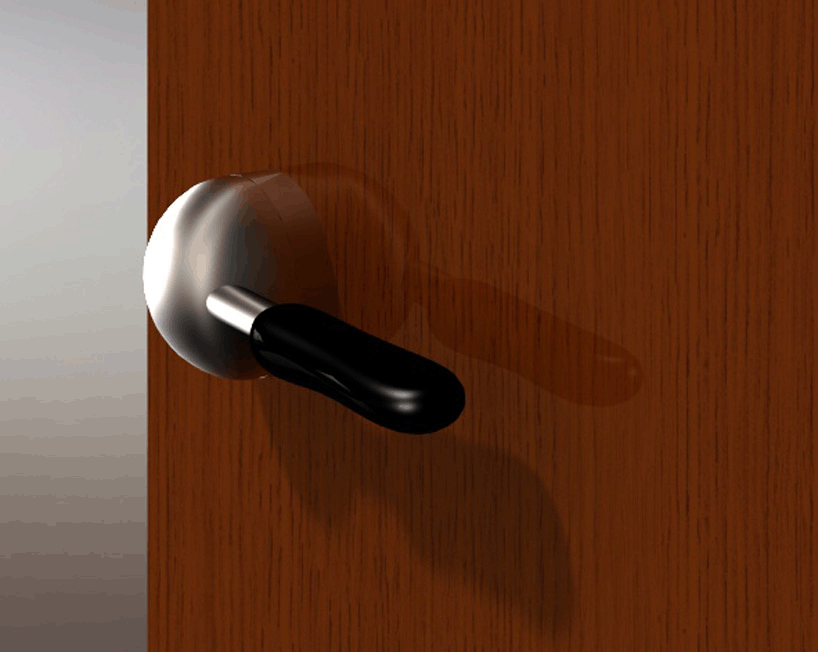

cartaz_5.gif view simulation
