maguey leaf

maguey leaf by federico capogrossi from mexico

designer's own words:

sweeping forms following the path showned by nature in maguey leaves.
general dimensions,raw materials and finishes are based on colombo´s standard.
in this particular case all the set is presented in a chrome plated finish to accentuate in a monochromatic way the light running through the contours of the organic shapes and the particularity sharp abiss formed in the intersection of the two segments; a contrasting texture was added in the rose plate.
symmetric handle, can be used from the inside as well as from the outside; trying to be cost effective and requiring a lower investment in tooling. also is simpler for installer and end users.

isometric

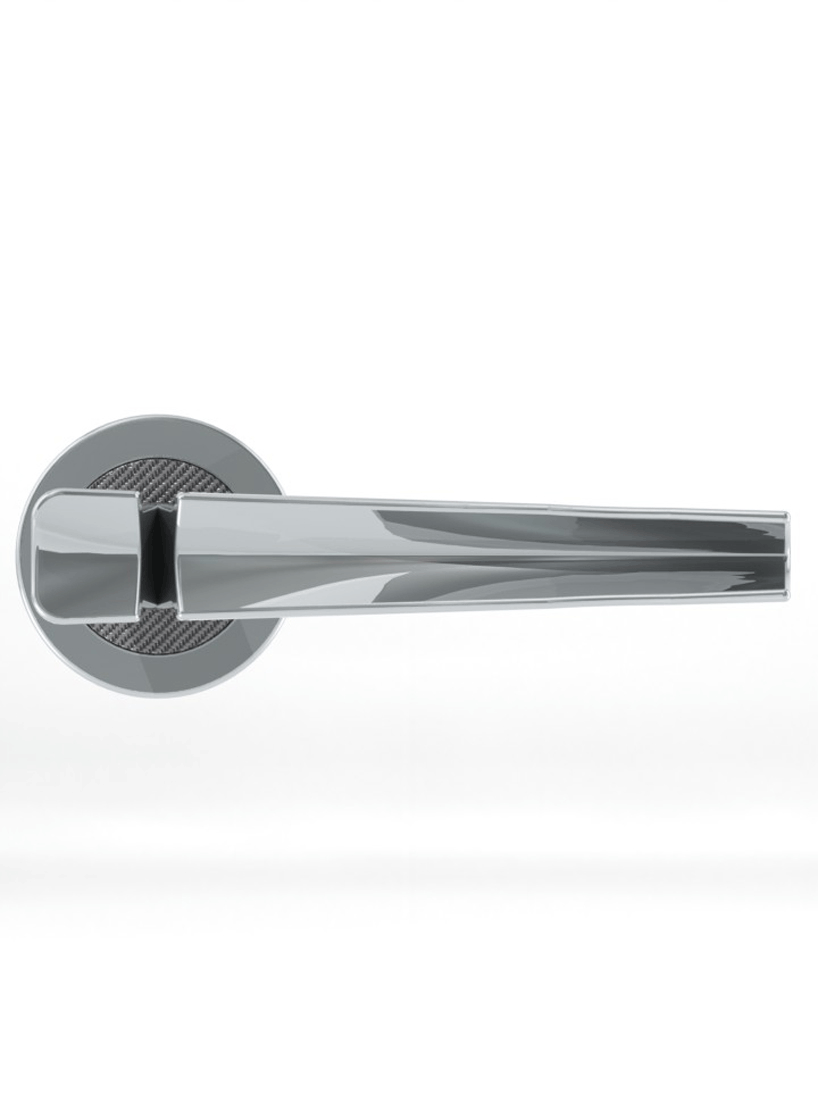

3.2.gif front view

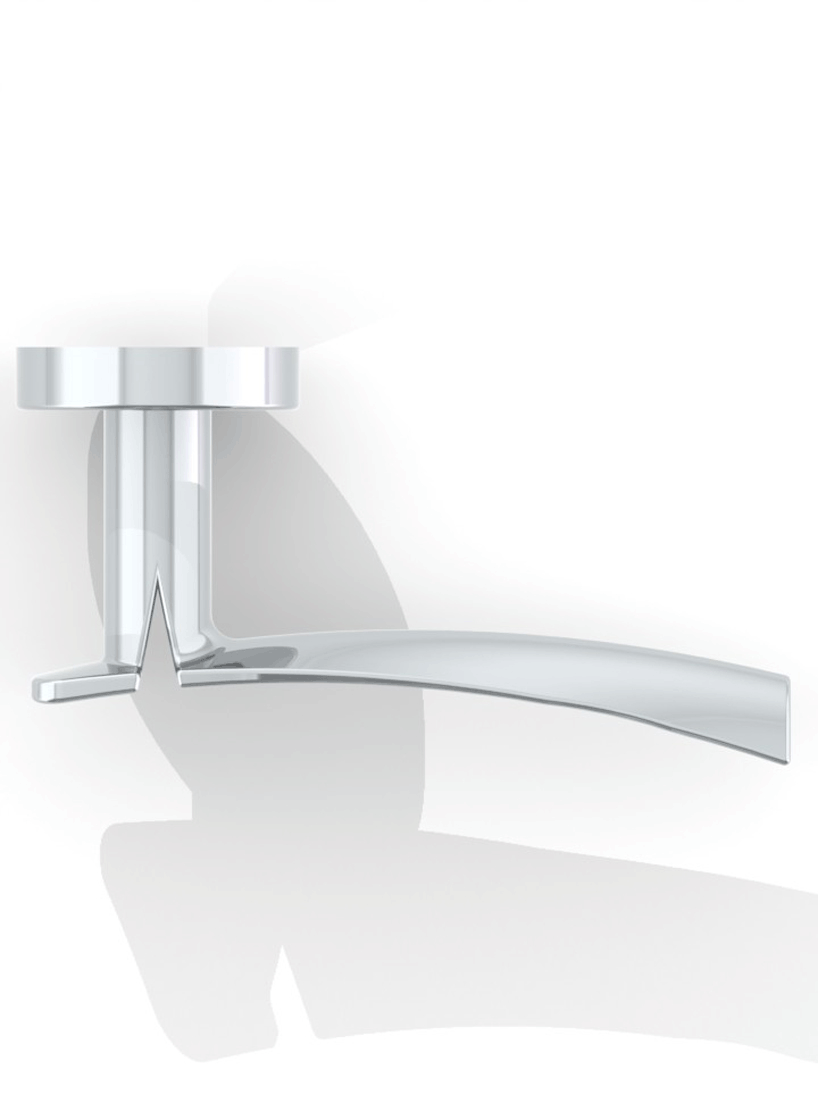

3.3.gif superior view

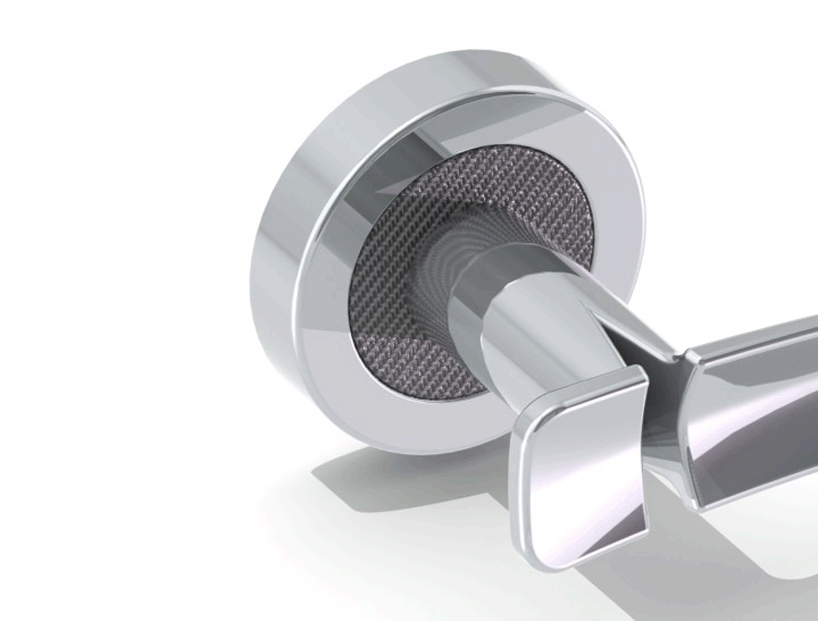

3.4.gif detail a

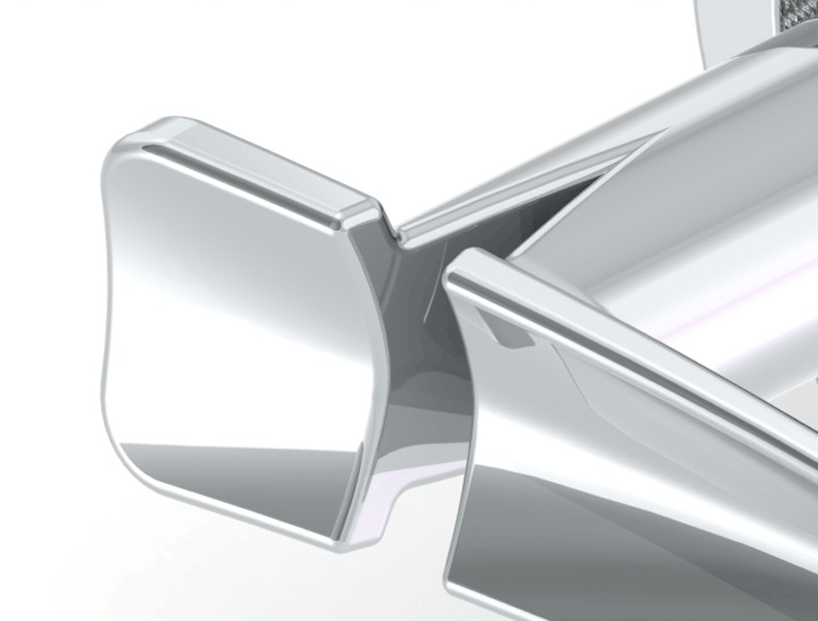

3.5.gif detail b

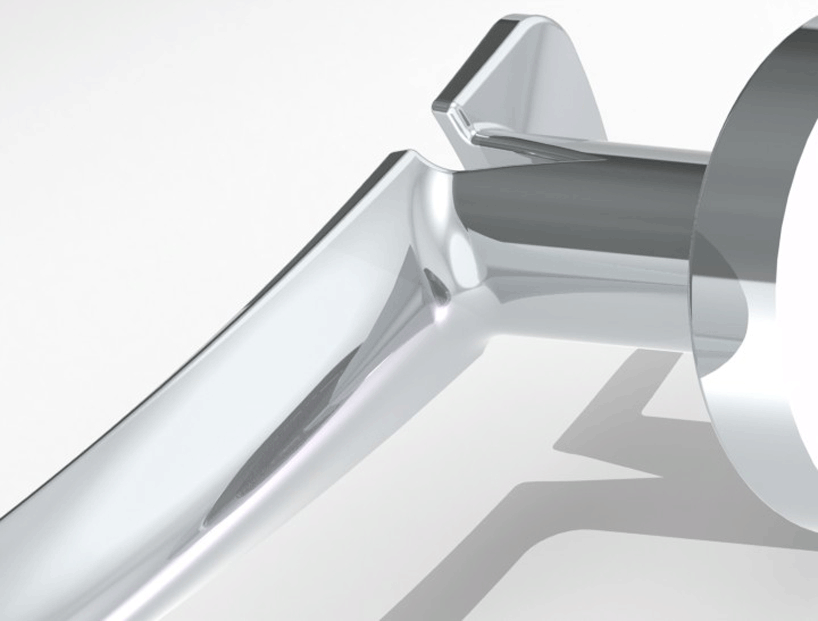

3.6..gif detail c
