Leva due

Leva due by aude genton from switzerland

designer's own words:

"leva due" door handle seems to be made from an assembly of a cylinder and a flat rectangular profile bended, actually it is one piece. the design underlines the functions: the bar used as a lever, and the cylinder transmitting the movement to the latch. the cylinder seems to stay fixe as the handle turns.
the junction between the two shapes is reinforced by a radius that also helps manufacturing the piece.

material: brass
finish: satin chrome or any of colombo finishes

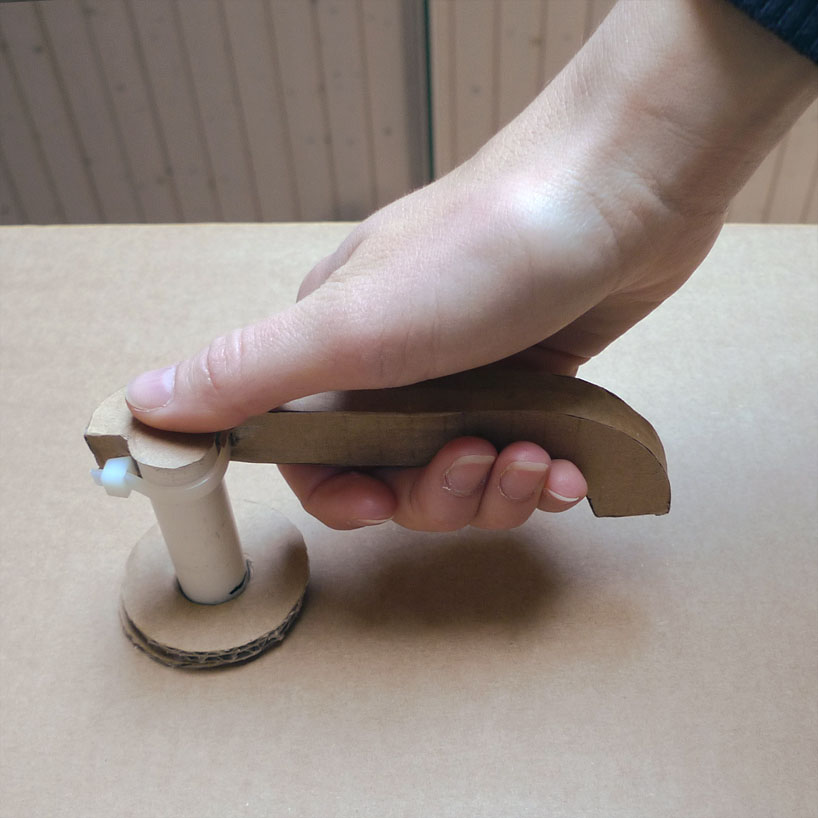

leva2model.jpg mock-up testing

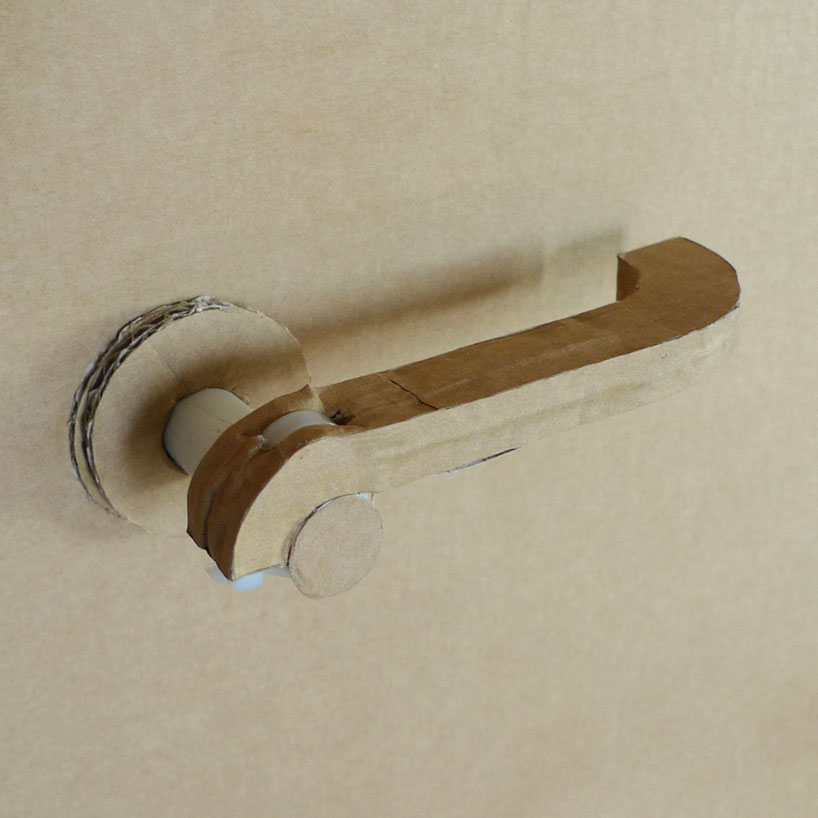

leva2model2.jpg mock-up

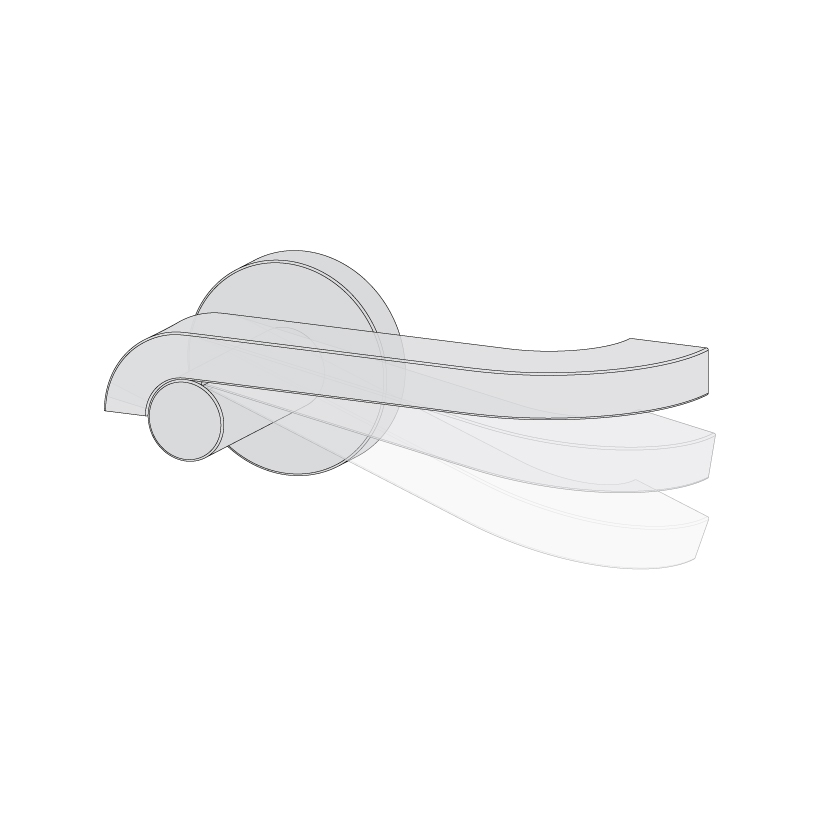

leva2mov.jpg movement

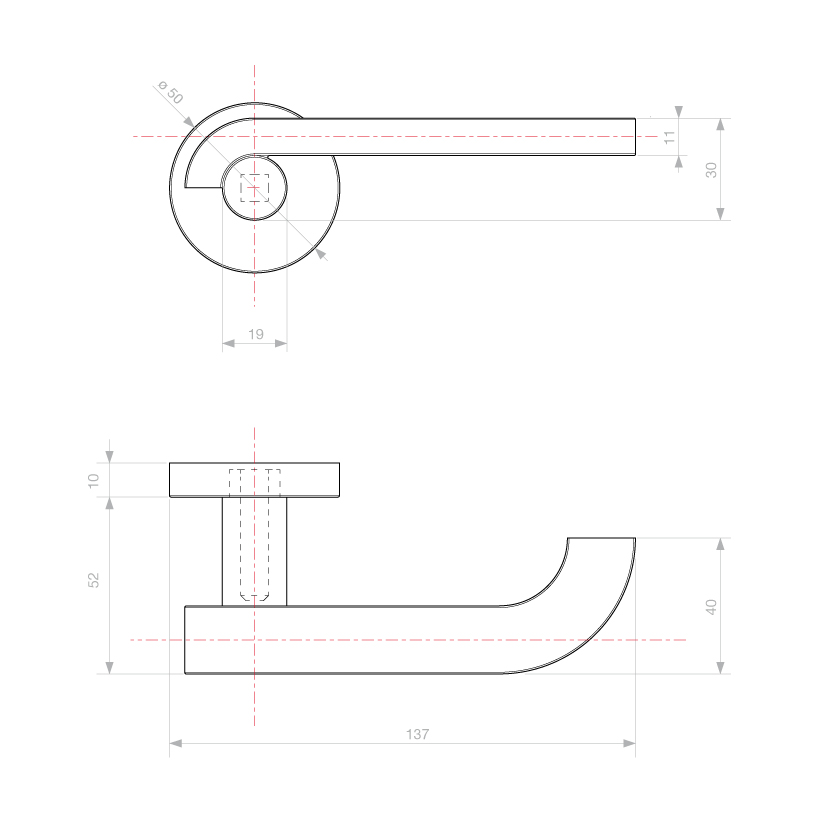

leva2dessin.jpg technical drawing
