handle h18 by luca bressan from italy
designer's own words:
while i was developing a new conference chair "c18" i was imagining to melt together three bars, the result was simply and strong that the chair took easily the production, i applied the same concept for this handle "h18".
the handle "h18" would probably made of molded aluminium, the mold would be made with a flat division, easy to produce and to maintain. if the minimum diameter you imposed in 19mm is a necessity the model could be easily resized, but i would prefer to maintain my proportions with 18mm. tapered surfaces for mold estraction are modifiable.

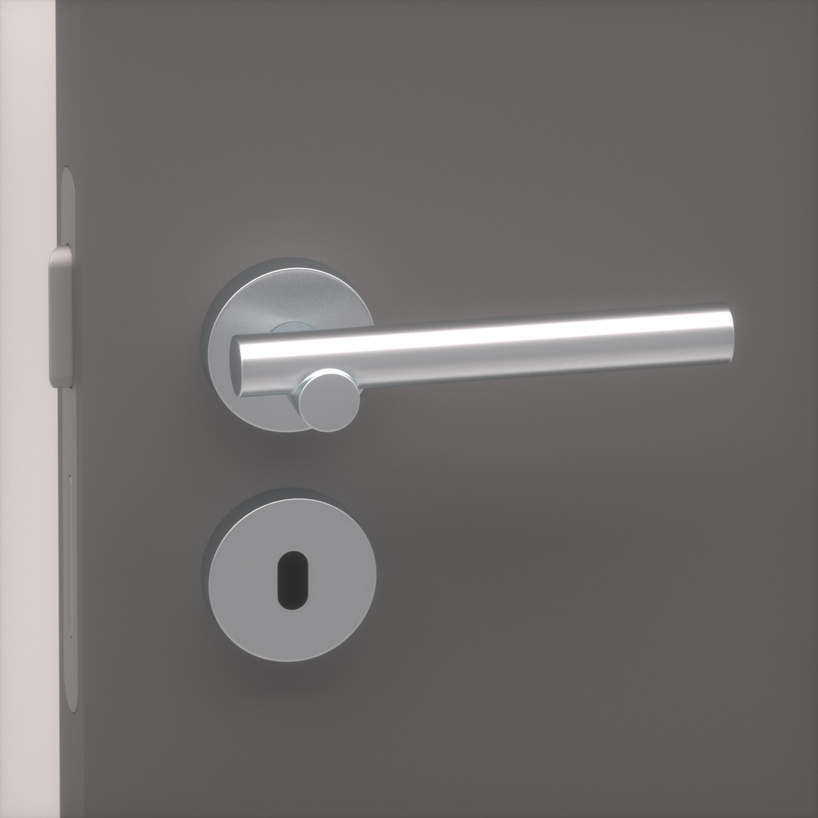

handle h18

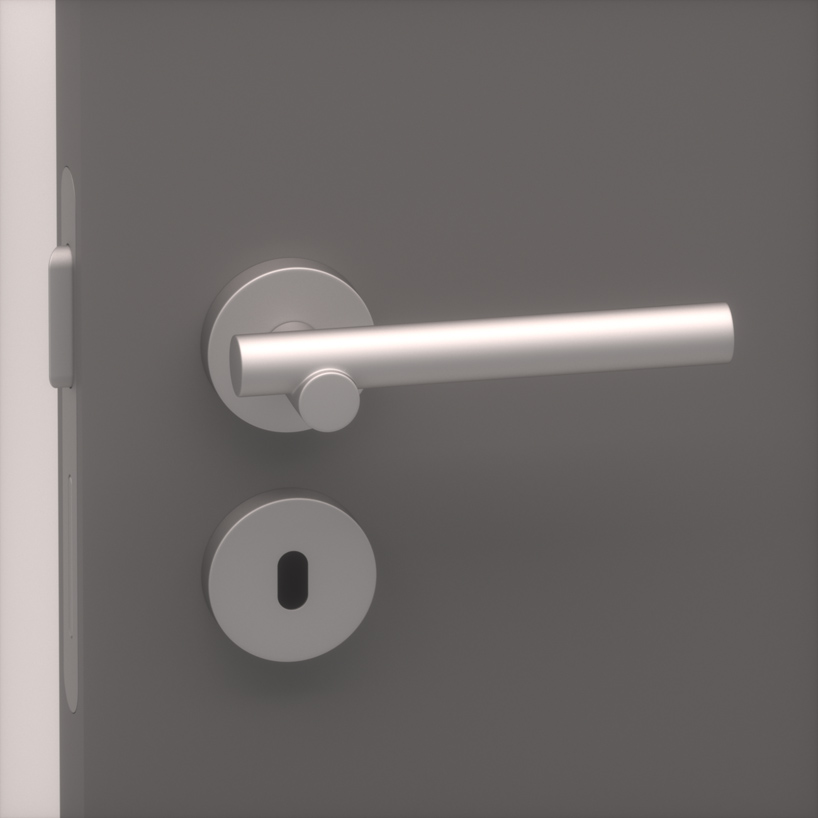

handle h18

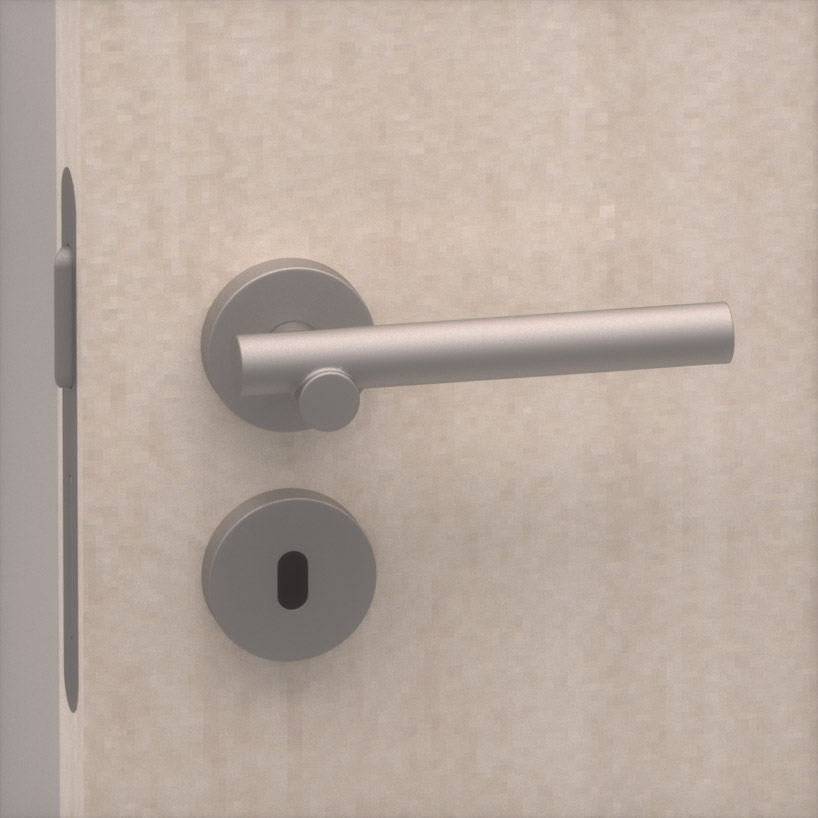

handle h18
handle h18
handle h18

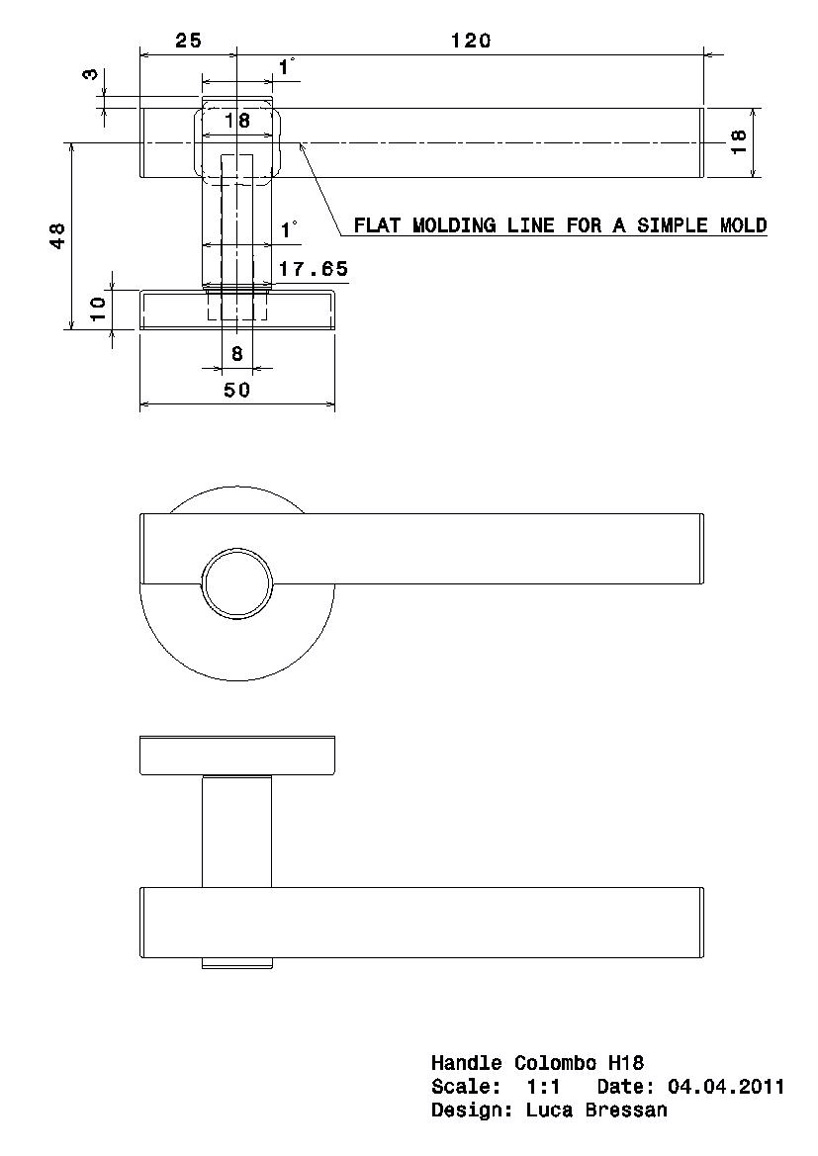

handle h18 technical drawing
