eco safe radiator by arzu husniye toker from turkey

Eco Safe Radiator Units are designed to have the advantages of both panel radiators and the cast iron columns. Every unit is an energy saving panel radiator, that has increased surface area, available for giving off heat so has the advantage of more heat convection.
Its unique and aesthetic appeal creates a meaning of ‘takes the colder air from a wider surface area, heats it in a small area and sends the warm air from a wider surface area’.
Units are standardized and very easy to produce. If there would be a leak in a column you can just change that unit. Units can be joined in different amounts which depend on the room size as it is seen in first image file.

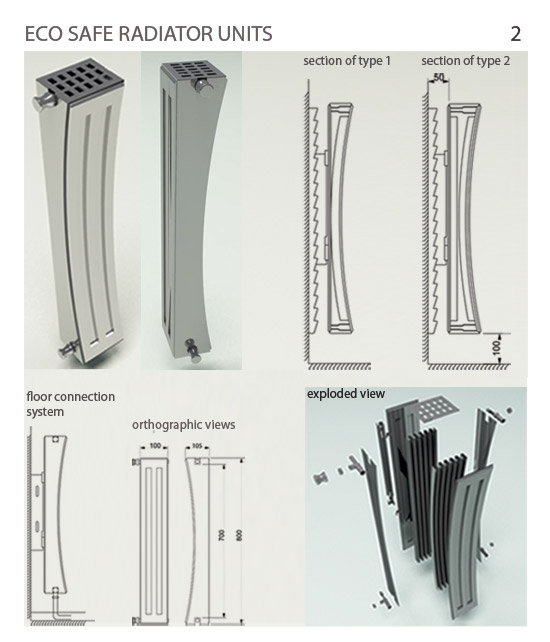

In second image file orthographic views, exploded view, sections and floor connection system of the radiator panels can be seen. Eco safe radiator unit has two types. First one has one fin and the second type have two fins between the panels.

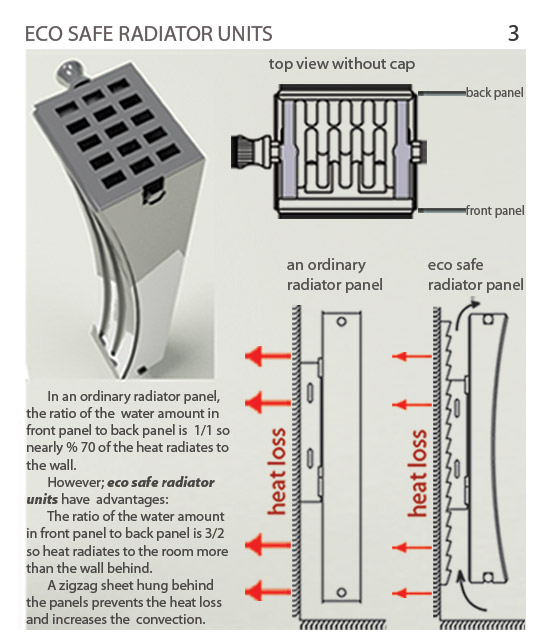

In an ordinary radiator panel, the ratio of the water amount in front panel to back panel is 1/1 so nearly % 70 of the heat radiates to the wall. However; as it is seen in third image file Eco Safe Radiator Units have lots of advantages:
The ratio of the water amount in front panel to back panel is 3/2 so heat radiates to the room more than the wall behind.
A zigzag sheet hung behind the panels prevents most of the the heat loss and increases the convection.
