AITOLOS K DOOR HANDLE by andreas kyranis from greece

Similar logic to ETOLOS but with the flexibility of developing a product system through the insertion of a different material surface. Possibility of developing multi-like transformations. The austirity of the design becomes playful with the coexistence of different materials, especially if products have different production technologies and philosophies. For example a combination of a glossy metal block with a coarse wood surface hand-made or artificially textured. The integration can also have the additional meaning of the alternative operator product iconography, which in turn may be industrial procedures, for example serigraphy with different painting gestures.

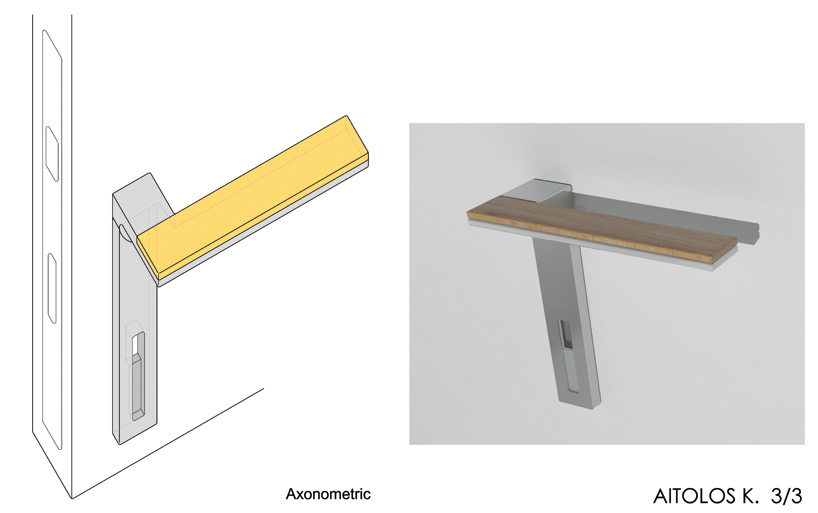

The designed product is a result of an unfolding that occurs in a rectangular net section sized 8x25 mm it is a proposal for a composition of a quorum of a door handle into a single abstract image. The rosette for the handle and a rossete for the lock disappears into the composition of the whole. The rotation movement axis and the key hole, result to a clean geometric distinctive sculptural interventions in the initial dominant geometry.
A door handle that has references to Early industrial production but to be produced requires Post industrial procedures.
Postindustrial utmost precision CNC machines
Simplicity /Purity /Frugality
The functional parts are trying to express themselves in a compositional totality
The whole product endowes gravity with far more than the minimum satisfactory

TECHNICAL DATA
Materials: stainless steel, aluminum, copper, zamak, inox, coarse wood, treated glass, synthetic materials
Texture: glossy or matte and different surface treatment
Finishes: edges with a radius of 0.5 to 1 mm, soft finishes that do not injure
Technology: the product could have been produced into the 19th century with mechanical engineering and handcrafted tools from a very good master of crafts with high cost
Production method: today probably the best way of producing the door handle it would be through the following stages:
Casting and molding of the basic quorum
Detailed machining on CNC milling
Polishing-finishing sander by robots
Final finishing procedures epimetalosis in succeeded bathrooms
It would be very interesting an inox version produced directly from machining processes
Treatment only in CNC milling machines and handmade mat polishing with only protection some very fine matte varnish

RESPECT WITH THE STANDARD ACCESSORIES MARKET
The products can be adapted to any common lock out in the market with the prefabrication of some special components:

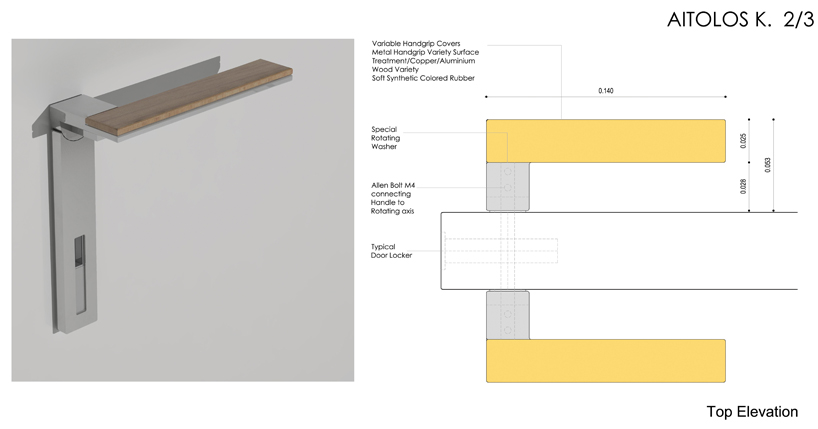

Special square rotating pivot axis with the standard cross-section who will be able to host allen bolts and the possibility of related reduction and increase in response to the different door thicknesses. The apparent axis in the working parties will have the same surface treatment as the apparent remaining parts.

A special very thin rotation washer in connection with the door knob. If we are to function as spring-loaded handles on the market, it should be designed to fit into a recess within the thickness of the handle and be a part that is not available on the market according to our knowledge, ready at very small dimensions required by our design.
