nanxi hotel: an Organic Retreat in Yibin, China



A newly completed hotel by WH Studio, known as the Nanxi Happy Pastoral Wild Hotel Treehouse, presents an evolution in treehouse-inspired design. Following the success of WH Studio’s 2019 Xianghu Senbo Resort Treehouse in Hangzhou (see designboom’s coverage here), the studio was invited to design this second iteration. The Nanxi Tree House brings fresh innovations inspired by nature and refined structural concepts to in Yibin City’s Nanxi District in China.



The Nanxi Tree House, or ‘Treehouse 2.0,’ is a refined iteration of WH Studio’s first treehouse design. While the Xianghu Treehouse emphasized integration with natural surroundings using a ‘nest’ concept, the new design abstracts organic forms, inspired specifically by the structure of leaves. Unlike traditional treehouses, this design emphasizes suspended forms and a lightweight structural system, bringing new perspectives to the familiar retreat experience.

WH studio nanxi hotel
images © Prism Image





Biomimicry and Structural Inspiration from Leaf Anatomy



The Nanxi hotel’s design by WH Studio draws from the structural form of leaves, particularly the Ginkgo biloba, one of the oldest tree species. Ginkgo leaves feature a fan shape and simple, clear vein structures that provide resilience against wind and rain. In the Nanxi Tree House, WH Studio mimics this structure through fan-shaped rooms and cantilevered supports that extend from the main ‘root’ of each unit. The guest rooms are staggered at different heights and angles to maximize sunlight exposure and scenic views, achieving a harmonious balance between functionality and aesthetic appeal.



Each guest unit operates as an independent structure, allowing for a visually organic arrangement and reducing the interference from vibrations caused by the cantilevered steel structure. Like the trunk of a tree, three main steel columns support the primary load of the building, with fan-like structural columns forming a stable triangular base. This assembly, combined with carefully placed smaller steel columns and window frames, results in a suspended and light-filled architectural experience, creating a floating effect without replicating specific tree elements.

WH studio nanxi hotel
the Nanxi Hotel Tree House by WH Studio is located in Yibin City, China





wh studio frames Scenic Views

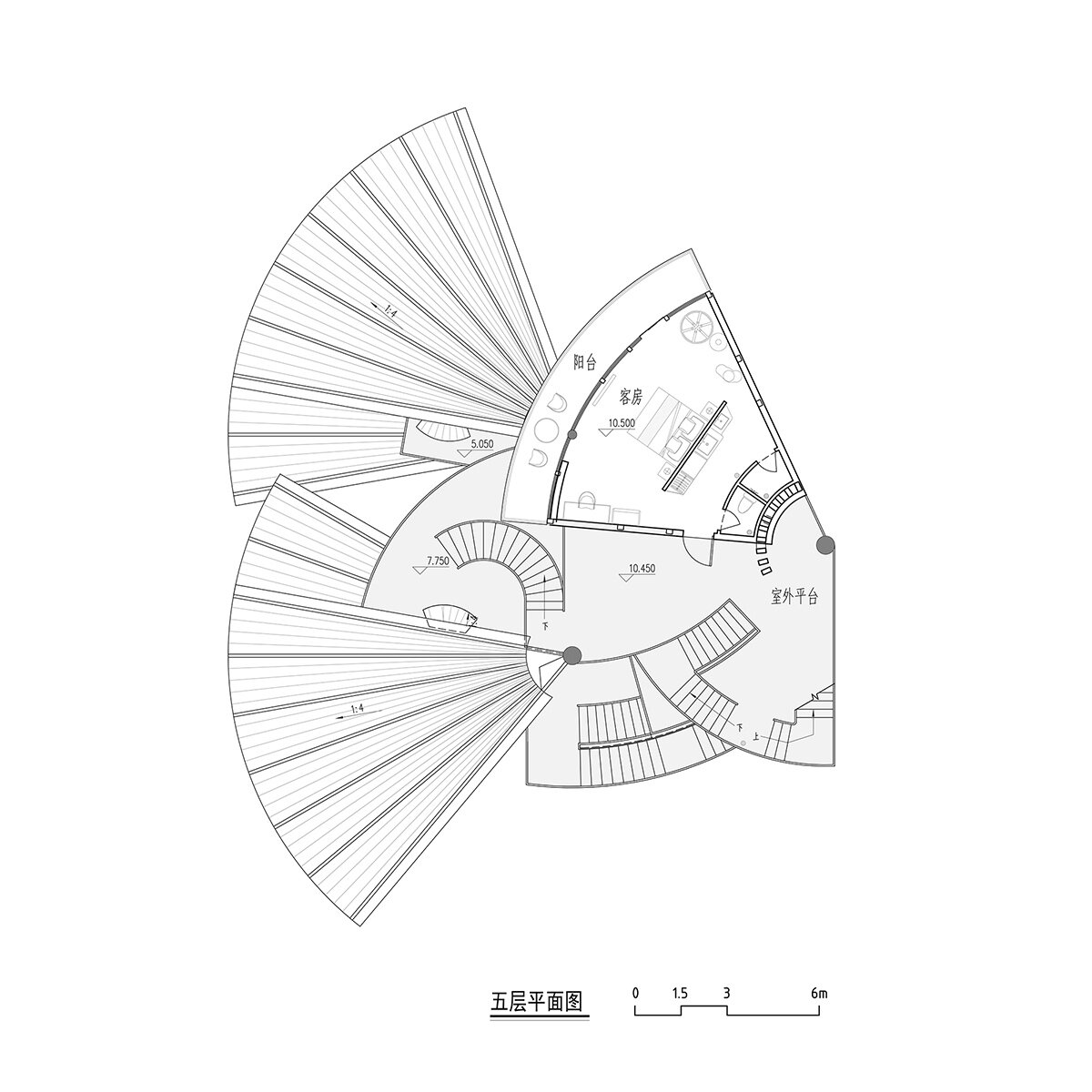

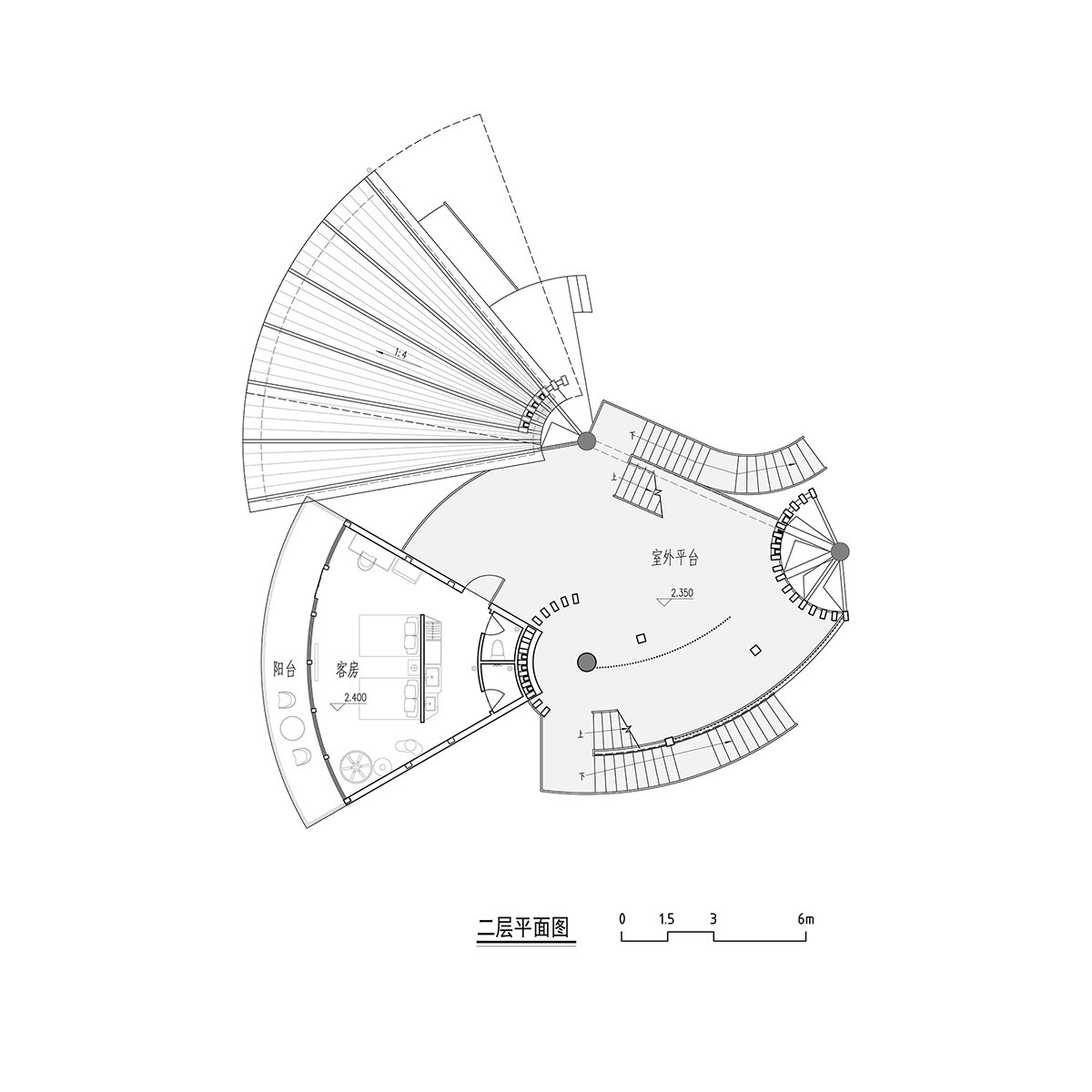

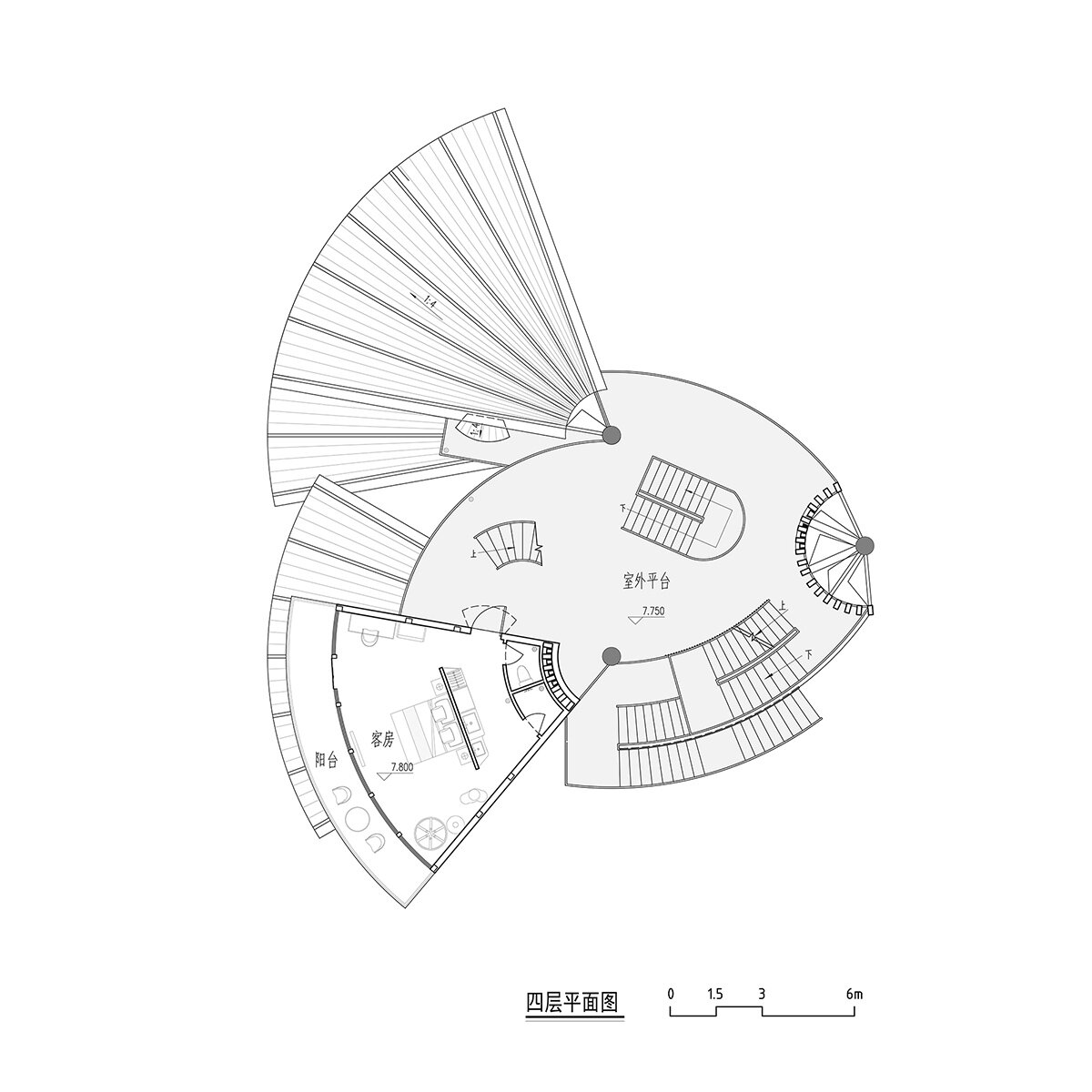

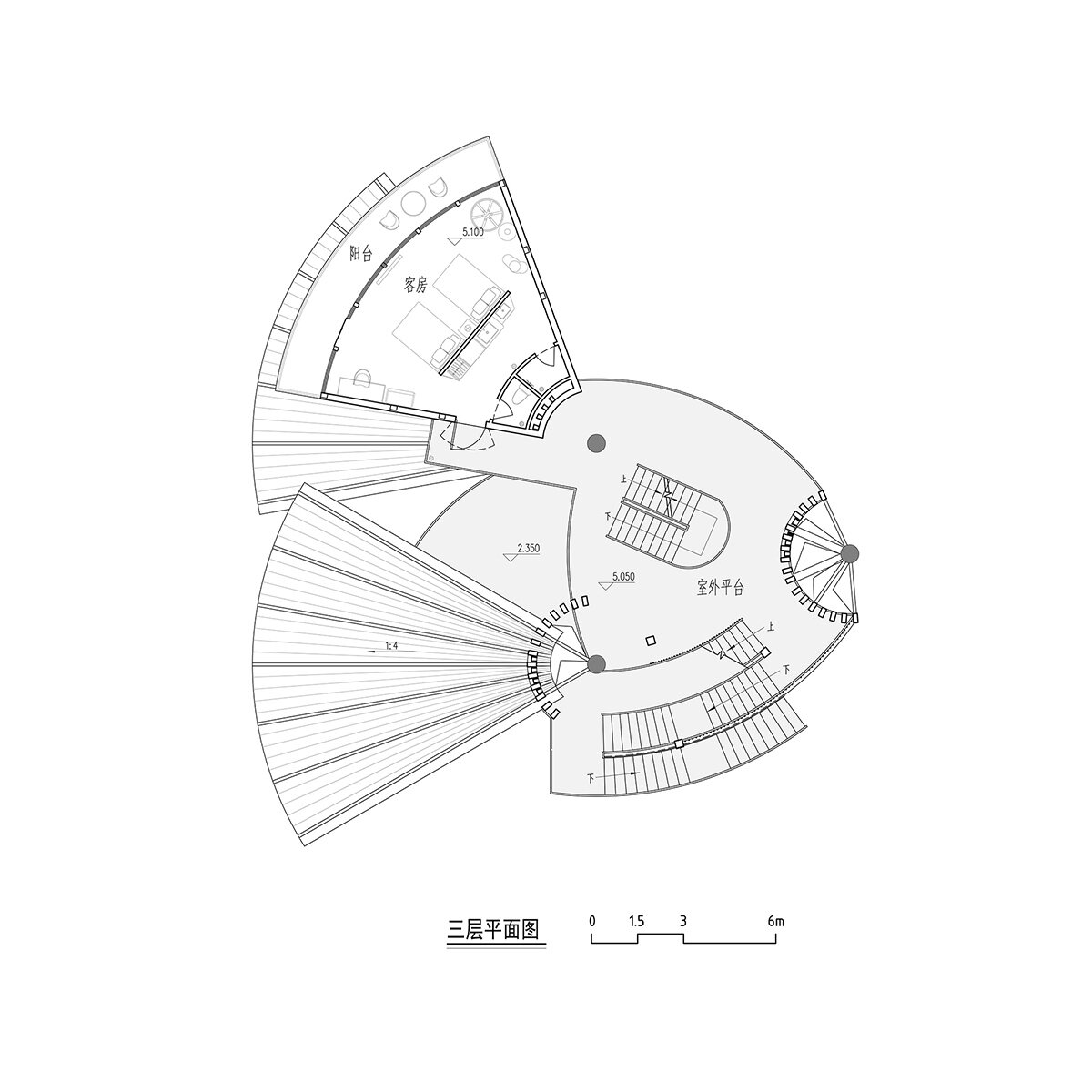

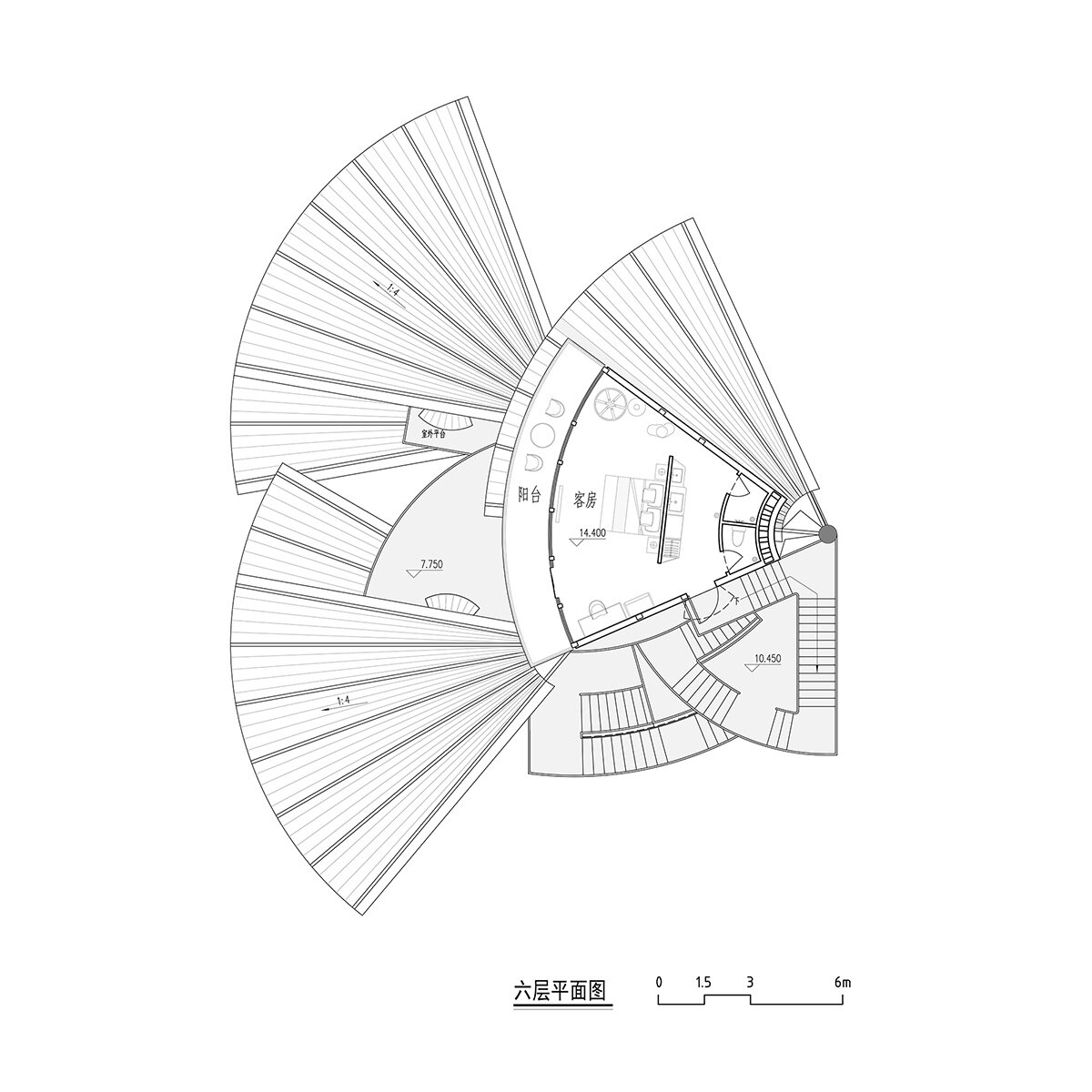

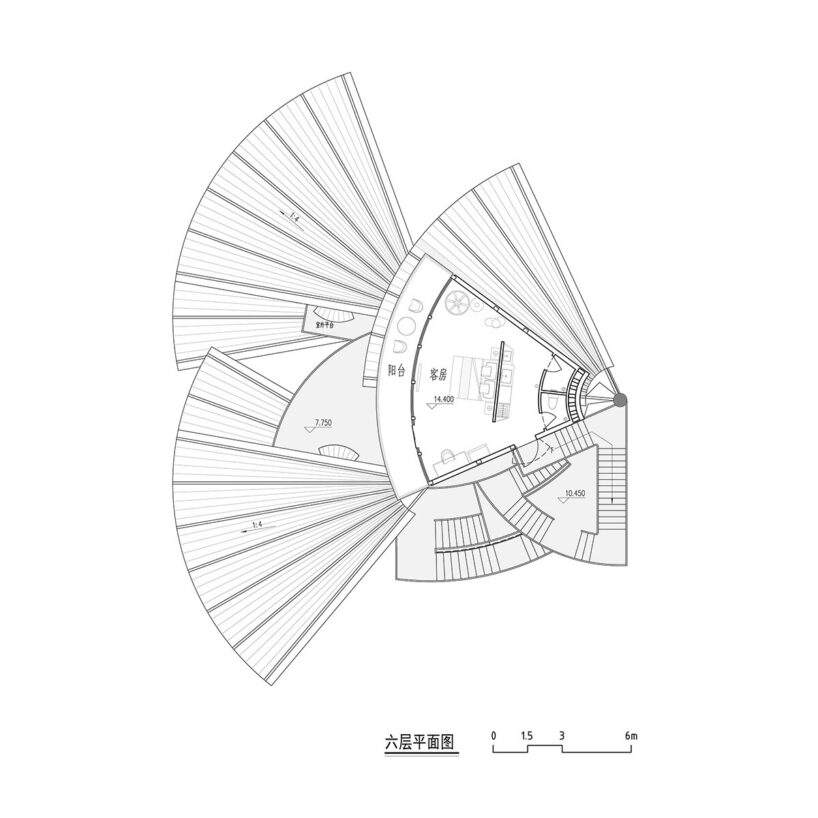

The interior layout of each unit is designed to balance privacy and connectivity with nature. A straight partition wall creates a flowing transition from the entry to the living area, and each room features a curved balcony approximately twelve meters (39 feet) long, offering unobstructed views. The fan-shaped floor plan and simple, clean interior aesthetic enhance the visual experience of ‘floating’ amidst the tree canopies.

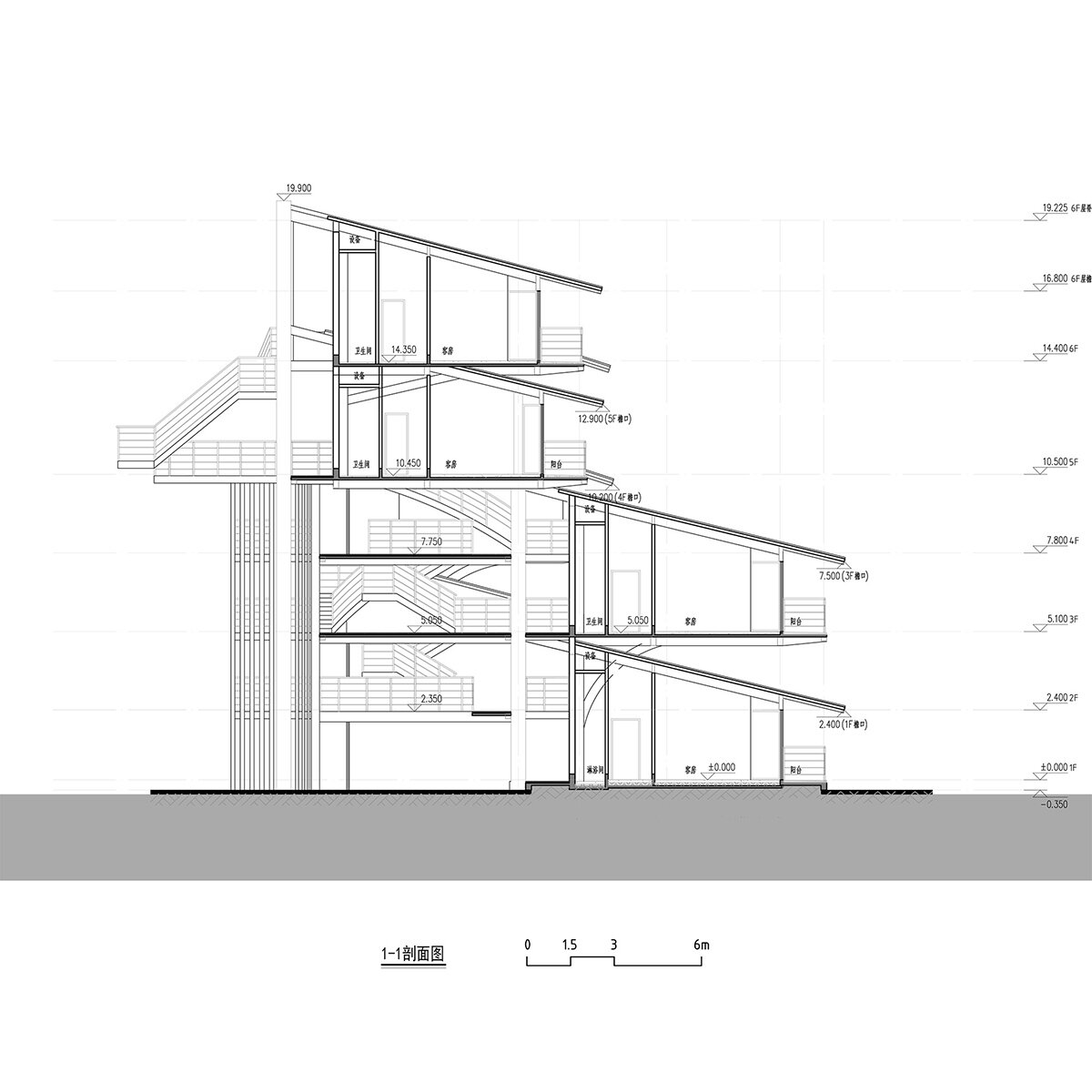

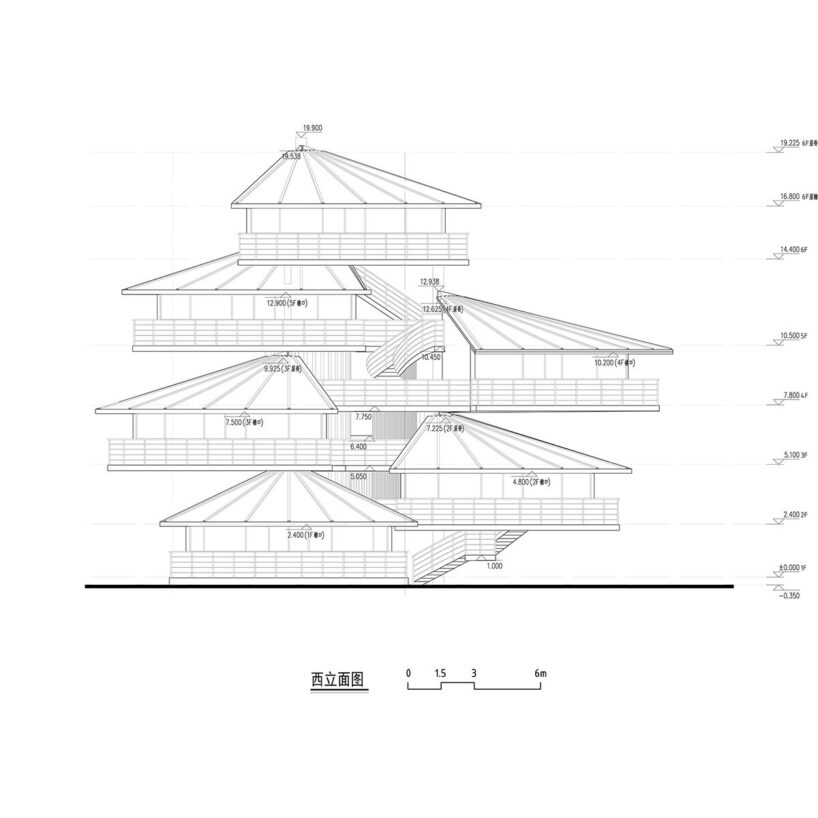

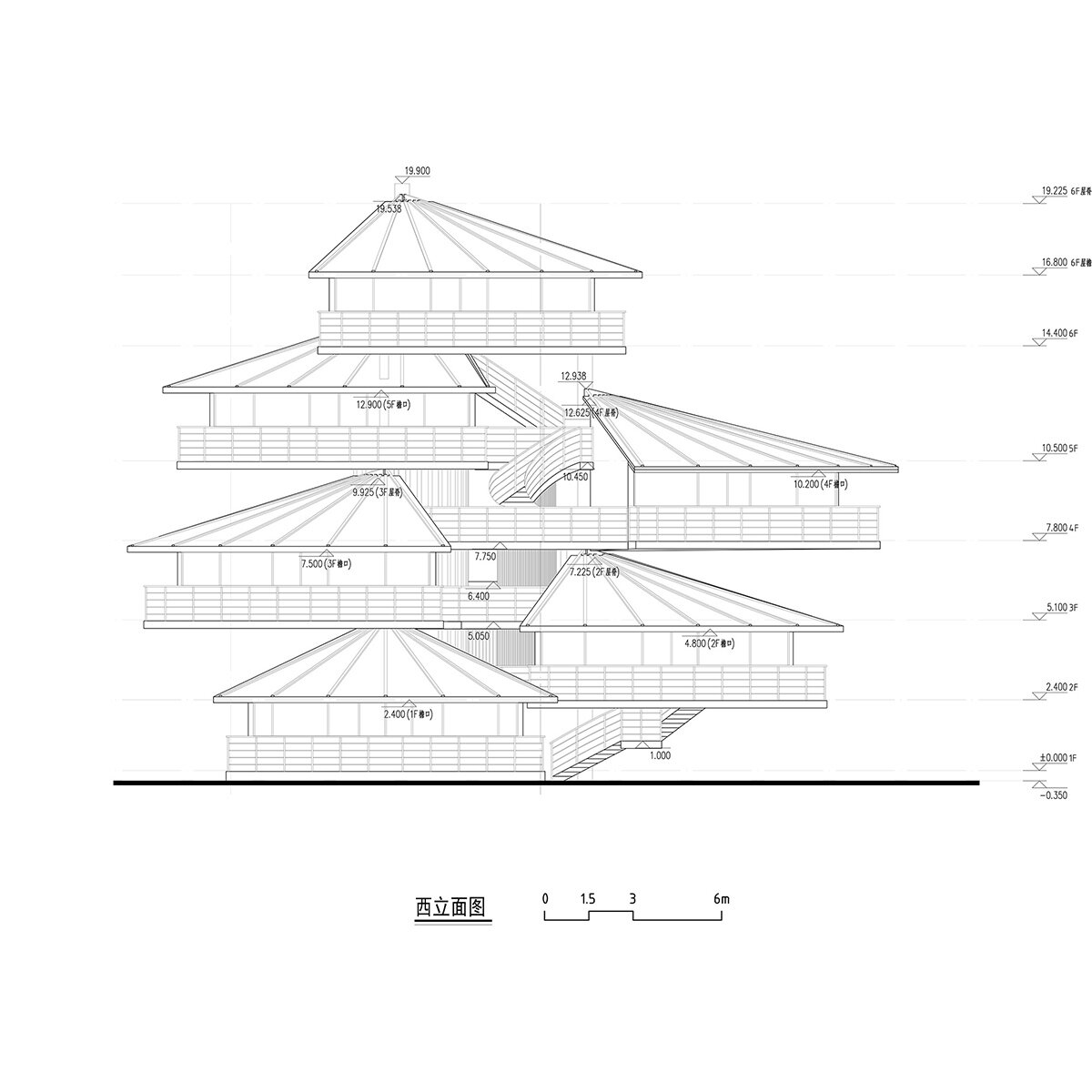

Standing at a maximum height of 14.4 meters, each of the three treehouses contains six guest rooms at varying elevations. To meet local safety standards, WH Studio incorporated two staircases per unit, integrating one as a hidden interior stairwell and the other as an open exterior structure. This dual-stair solution satisfies safety requirements while enhancing the building’s visual dynamism, giving guests the option to experience the space through distinct pathways.

WH studio nanxi hotel
the design builds on the success of WH Studio’s first tree house at Hangzhou Xianghu Senbo Resort

WH studio nanxi hotel
the architecture is inspired by the organic structure of the resilient ginkgo biloba leaves

WH studio nanxi hotel
each guest unit is independently structured to minimize structural vibrations

wh-studio-tree-house-design-nanxi-happy-pastoral-wild-hotel-china-designboom-06a

the main structure is supported by three steel columns that support the cantilevered floors

WH studio nanxi hotel

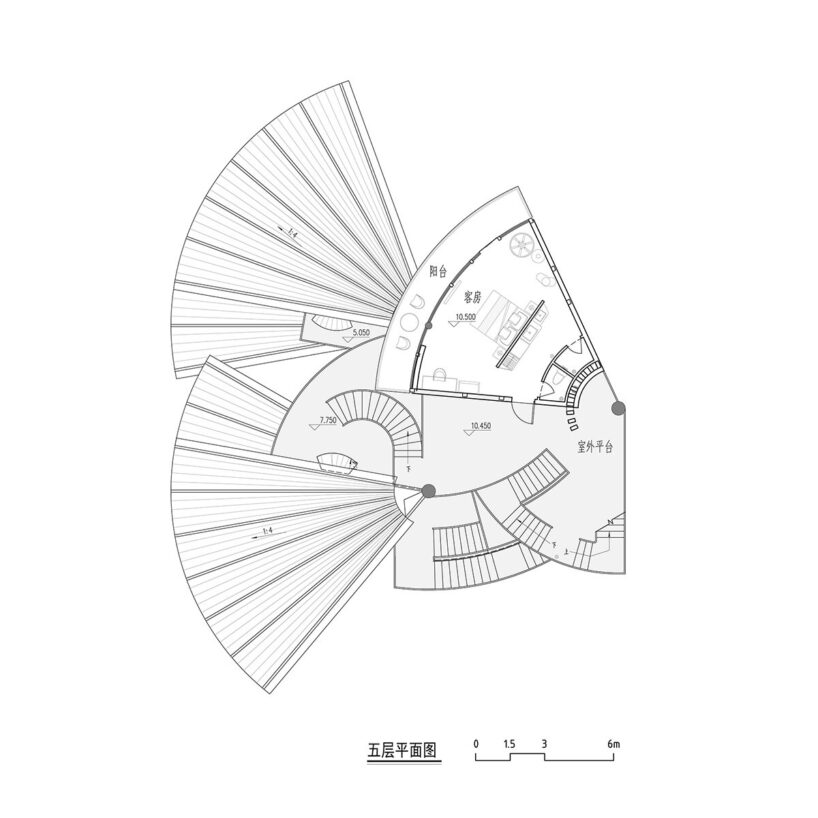

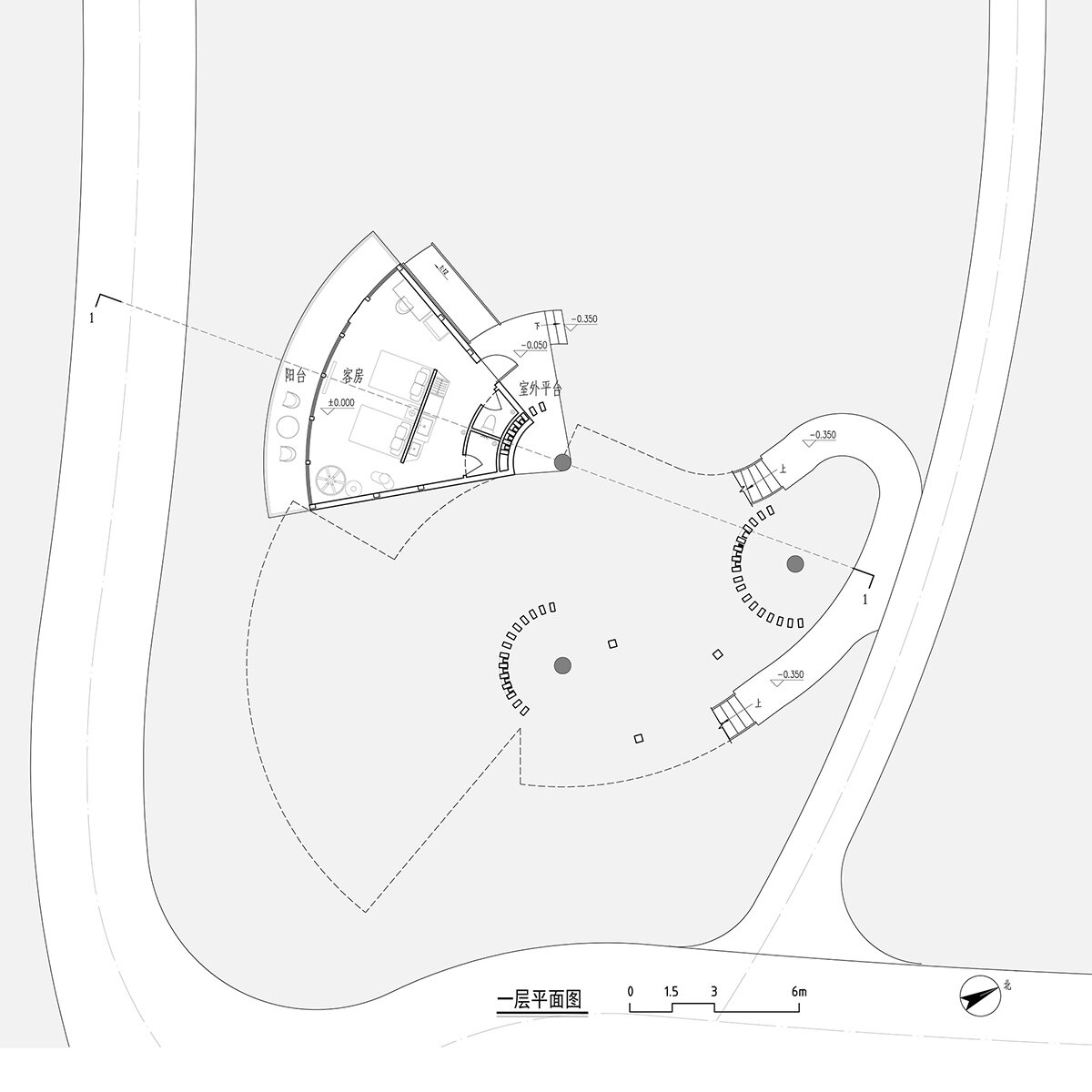

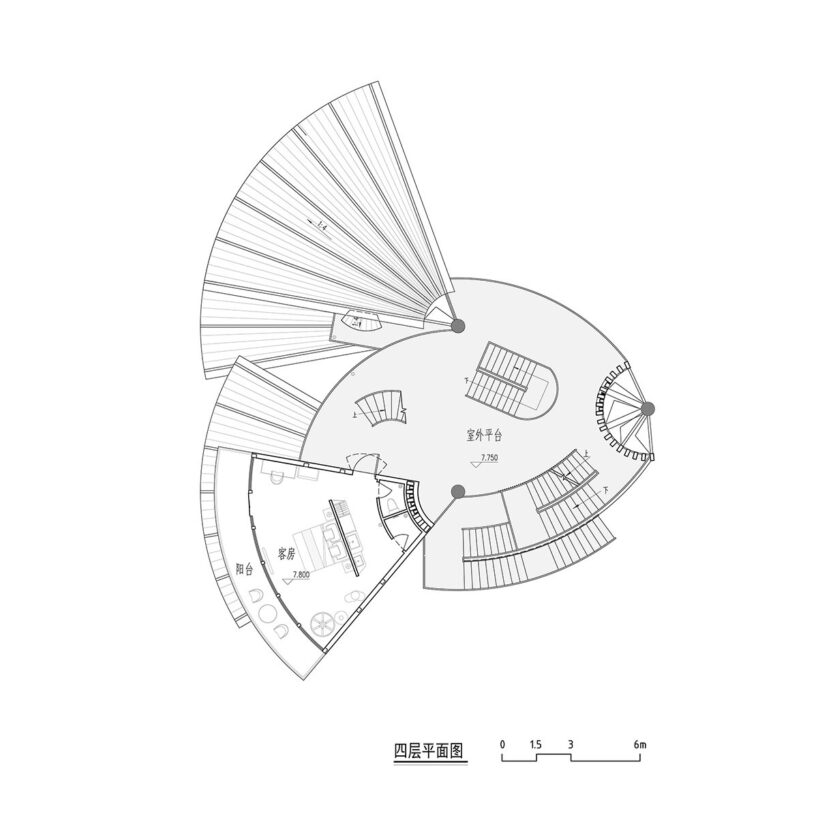

interior layouts are simple and clean with fan-shaped floor plans that maximize privacy and views

wh-studio-tree-house-design-nanxi-happy-pastoral-wild-hotel-china-designboom-08a

curved balconies up to twelve meters in length lend expansive views of the natural landscape



1/9
1

1

1

1

1

1

1

1

1


project info:



name: Nanxi Happy Pastoral Wild Hotel Tree House

architect: WH Studio

location: Yibin, China

area: 1689 square meters
completion: 2024
photography: © Prism Image



lead architects: Wang Hui
collaborators: Ding Chuhua, Liu Mengman, Ye Zichao, Ye Yunfan
construction drawing team: Hu Bin, Zhou Li, Wang Yinan, Ou Zhi
project consultant: Zeng Piao, Tang Ting
client: Yibin Nanxi Xianyuan Cultural Tourism Development Co., Ltd
