San Raffaele hospital gets a new addition



When designing a new extension to Milan‘s San Raffaele Hospital, Mario Cucinella Architects wanted to create a highly efficient building that welcomes patients and inspires calm. To achieve this, the team prioritized natural light, maximized privacy, and wrapped the facility in a gently curved curtain wall system with ceramic fins designed to lock in heat.



The Italian architects first won the competition to design the new Surgical and Emergency Department back in 2015. The completed facility joins the existing—and internationally recognized—university hospital and scientific institute on the edge of Milan’s city center. The existing structures date from the 1970s and 1980s and range greatly in their architecture. Part of the brief was therefore to create a more coherent urban realm for this densely built-up site.

mario cucinella completes iceberg-like hospital in milan with façades of ceramic fins
images by Duccio Malagamba





a huge 40,000 sqm program



The building has a simple, almost rectangular floor plan. The first floor at ground level houses Italy’s largest emergency room inside a podium-like base clad in earthen colored tiles. The massive 40,000 sqm program also includes a surgical block with 20 operating theaters below ground level, including two of the latest generation neurosurgery units. Dedicated rooms for receiving visitors and reception areas for visitors and outpatients are located on all the above ground levels and within the building’s corners, affording natural light and views of the city. The new hospital is also topped with a roof garden to connect patients to nature.



When organizing the extensive program, the architects carefully considered the floor plan to minimize the time it takes to reach vital critical facilities. Another important consideration was to maximize internal site lines so hospital staff can more easily monitor patients’ needs.

mario cucinella completes iceberg-like hospital in milan with façades of ceramic fins
ceramic louvers help mitigate heat gain





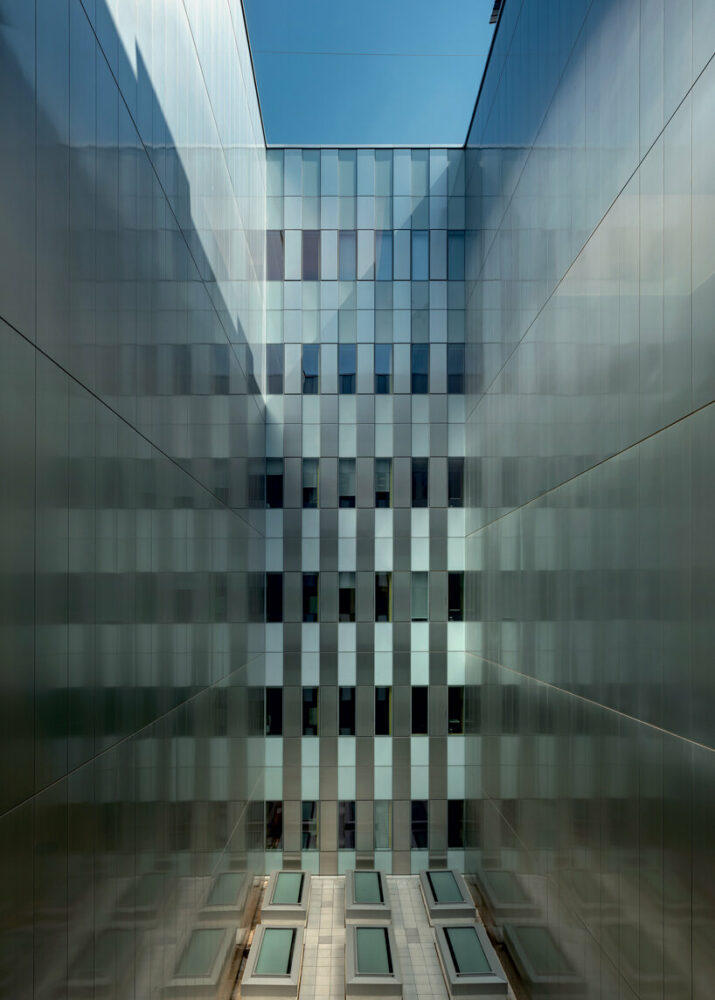

the healing power of natural light



To boost both patient and staff wellbeing, Mario Cucinella Architects introduced natural light into the building wherever possible. The sunlight is then diffused by the louvred elevational treatment to mitigate heat gain. The ceramic louvers vary in depth in response to the path of the sun. The ceramic has also been specially conceived to disintegrate smog particles and preserve heat, cutting energy consumption by 60%. Additionally, some 60% of the elevations are made up of opaque insulation panels that improve the energy performance of the building’s envelope.

mario cucinella completes iceberg-like hospital in milan with façades of ceramic fins

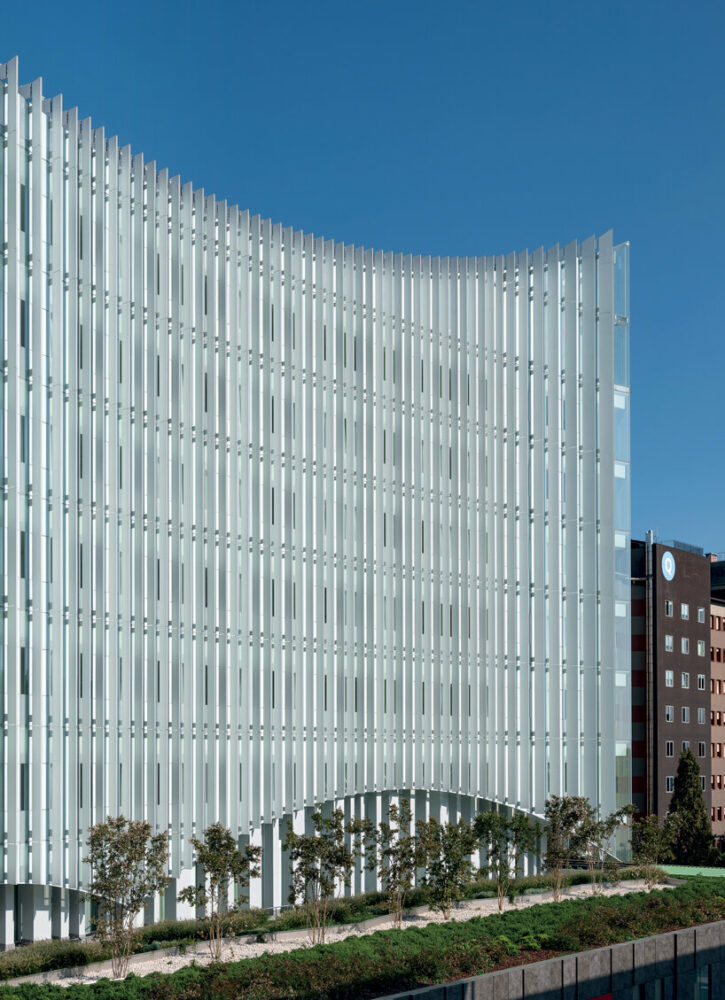

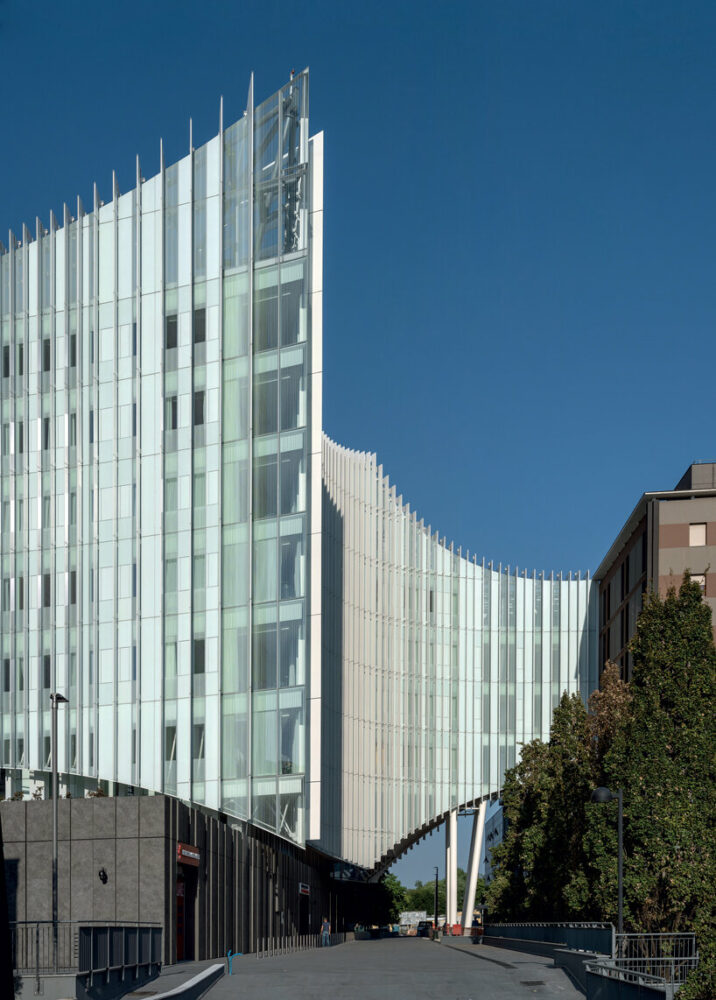

the building is gently curved





The team say that the completed hospital has been given the nickname ‘Iceberg’, in part to its gently curved form, which seems to compress and expand into its dense urban site. Mario Cucinella says, ‘We worked with the clear intention of creating a well-designed building that would greatly improve comfort. A building that needed very little energy for heating, retaining heat, and generating little thermal gain required very little cooling. San Raffaele’s new Surgical and Emergency Department is certainly one of the projects that best illustrates the studio’s commitment to sustainability. Its iconic façade is a clear symbol of this.’



See designboom’s previous coverage of the project here.

mario cucinella completes iceberg-like hospital in milan with façades of ceramic fins

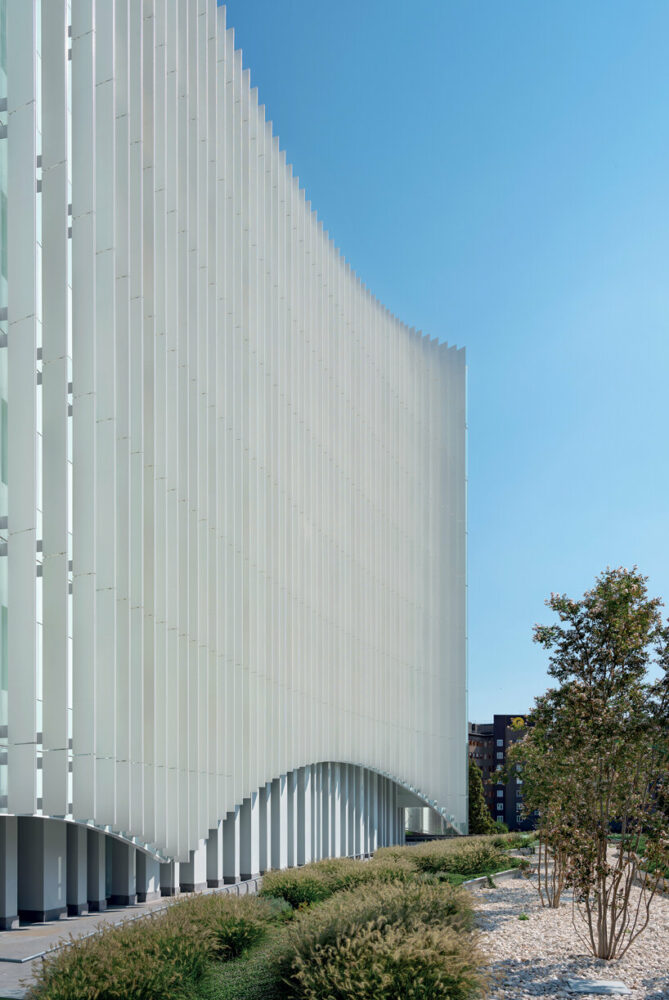

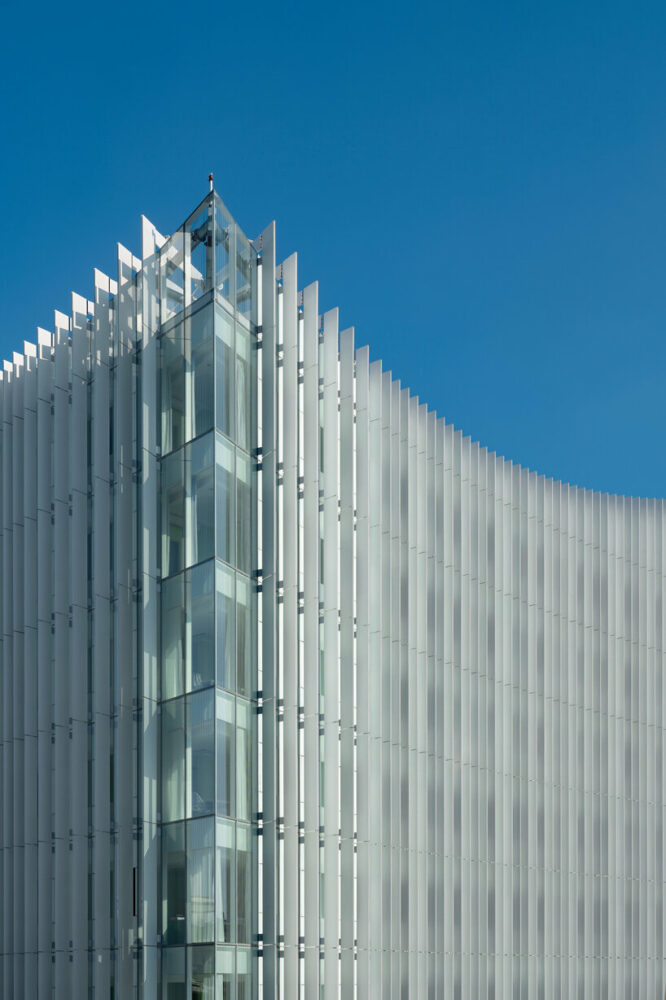

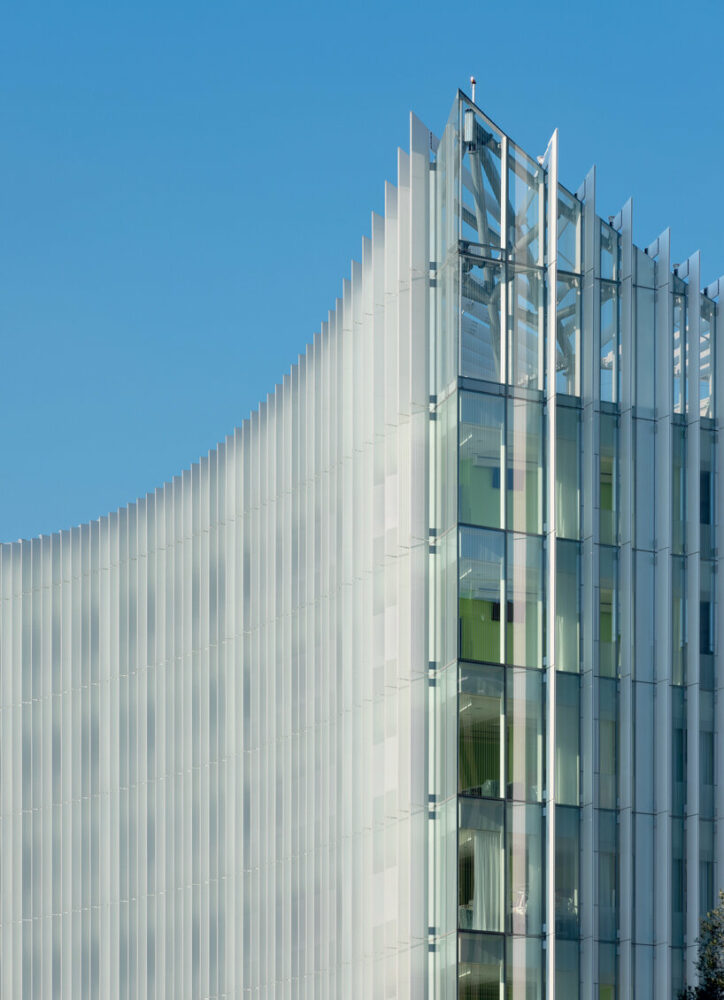

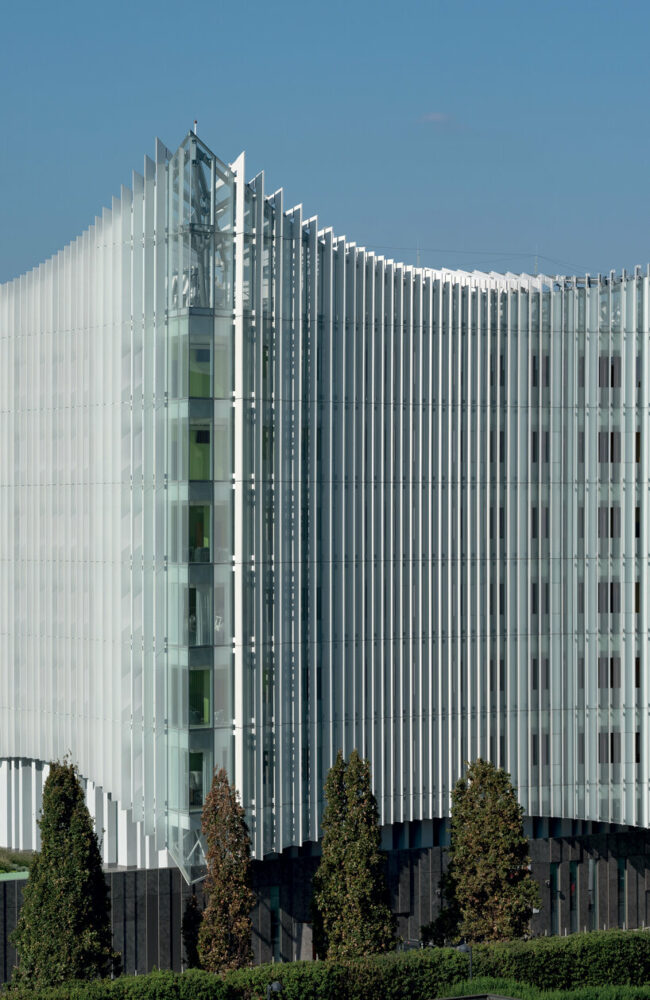

the ceramic louvers are also conceived to disintegrate smog particles and preserve heat

mario cucinella completes iceberg-like hospital in milan with façades of ceramic fins

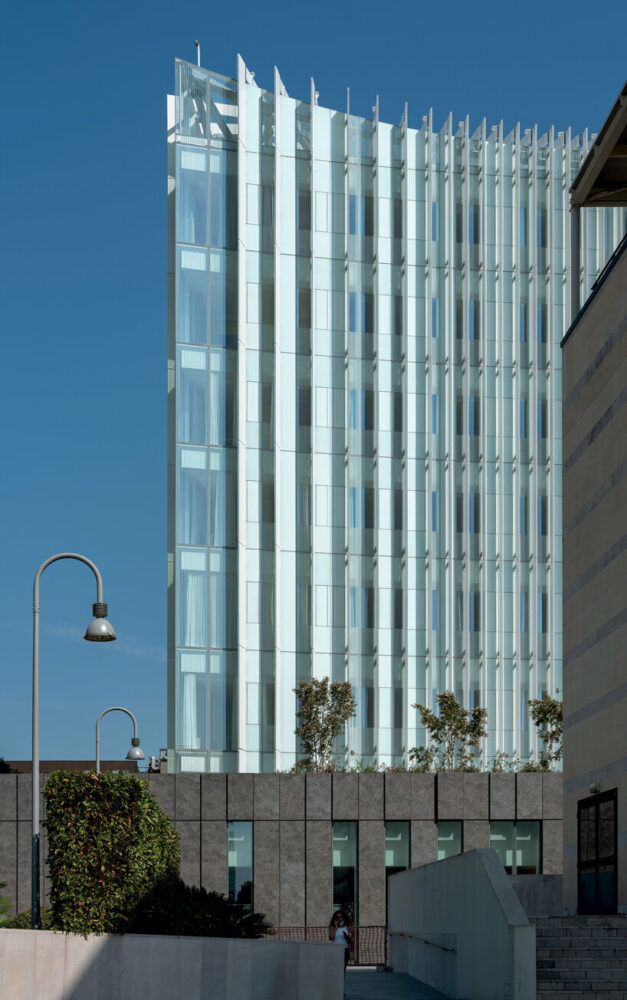

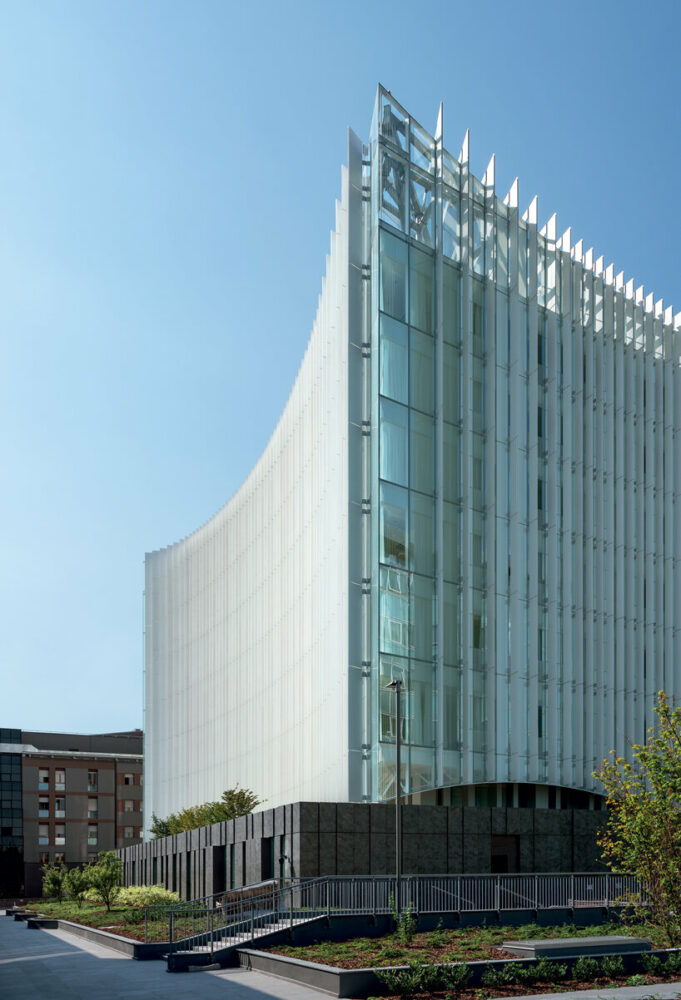

the first floor podium is clad in earthen colored tiles

mario cucinella completes iceberg-like hospital in milan with façades of ceramic fins
the design includes dedicated rooms for receiving visitors on each above-ground level

mario cucinella completes iceberg-like hospital in milan with façades of ceramic fins
hospital-grade materials promote hygiene and reduce maintenance requirements

mario cucinella completes iceberg-like hospital in milan with façades of ceramic fins
below ground accommodates a surgical block with 20 operating theaters
