DUTS design has completed a new space of office, sports and creativity in the huangpu district of shanghai. located within ‘building no.8’, an old factory space, the project transforms the existing construction into an office area with an indoor football field and fitness space. the studio integrates structural reinforcement and the floating office concept, providing the old plant with new vitality. DUTS design creates 'floating' office within renovation project, in shanghai

all images courtesy of qingshan wu

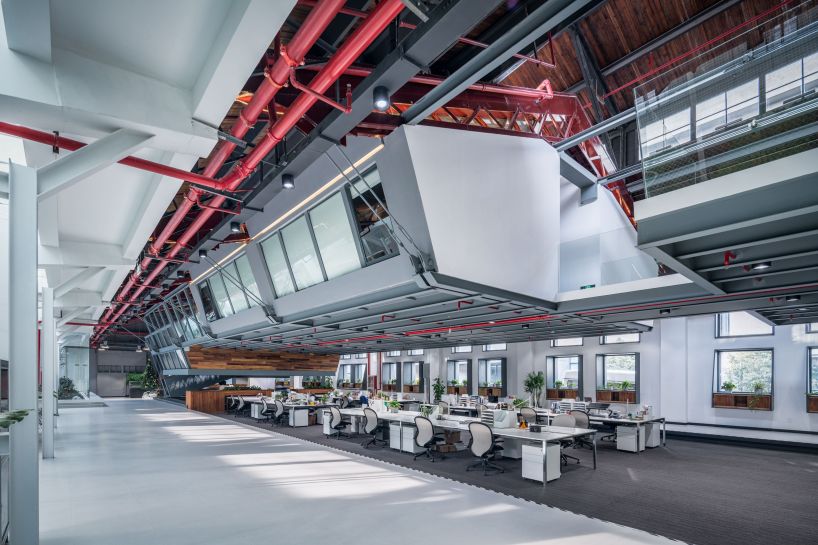

DUTS design replaced the original T-shaped truss, with a steel-structure-herringbone one and removed the horizontal steel wire rope, adding a 1.7-meter indoor ceiling. taking advantage of structural reinforcement, the architects suspended the two-story office under the roof support. a part of the underlying space functions as an open office area by subsidence with the floor elevation, while the other part serves as an indoor football stadium and recreational area. meanwhile, the large conference room and executive office are set on the second floor.DUTS design creates 'floating' office within renovation project, in shanghai





inside, the walls are painted white, while the ground is covered with white matte glazed tiles. for visual effects, the entire second-floor office area settles against the main entrance like a hanging ‘battleship,’ with ascending stairs complementing the black perforated steel grating, dark red steel beams, and roof plank, to highlight the industrial style.

DUTS design creates 'floating' office within renovation project, in shanghai

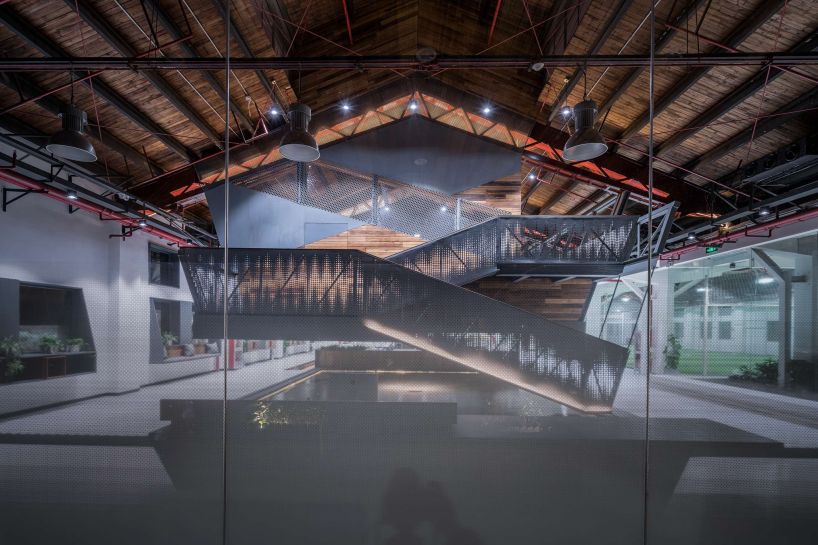

in terms of interior design, a steel table about three meters long with a hidden bottom, is placed in the second floor office. it takes advantage of wedge-shaped visual deviation for the façade with the steel beams hidden from the sight, so the visible place is only six mm thick. furthermore, a gravity pool takes place right below the conference room, with only 150mm distance between the water surface and the stairs of the floating office.DUTS design creates 'floating' office within renovation project, in shanghai





by stepping on the first stair out of the ground, the user perceives the concept of suspension. the light on the water surface and the steel reflection are embodied within the design. the original style is retained in the façade of the building layout, with only a slim steel canopy that marks the main entrance of the entire structure. for the renovation of ‘happy pier no.8 old factory,’ the ultimate steel amount for truss transformation is 30kg/sqm with reasonable program and great economy.DUTS design creates 'floating' office within renovation project, in shanghairenovation project of building 8 in happiness dock 3 renovation project of building 8 in happiness dock 7

renovation project of building 8 in happiness dock 5renovation project of building 8 in happiness dock 8renovation project of building 8 in happiness dock 9renovation project of building 8 in happiness dock 10renovation project of building 8 in happiness dock 11renovation project of building 8 in happiness dock 12





project info:



name: renovation project of building 8 in happiness dock

architects: DUTS design

architect in charge: ling zhong

architectural design team: arnaud rossocelo, tao wan, yingqi hu, feng dong, xiaofeng chen

structural design team: xiang fang, maoming zhang

interior design team: wanggang shi, ke wang

project manager: wenjie zhang

client: yicheng industrial investment co. ltd.

location: shanghai, china

area : 2022 sqm (21765 sqft)
