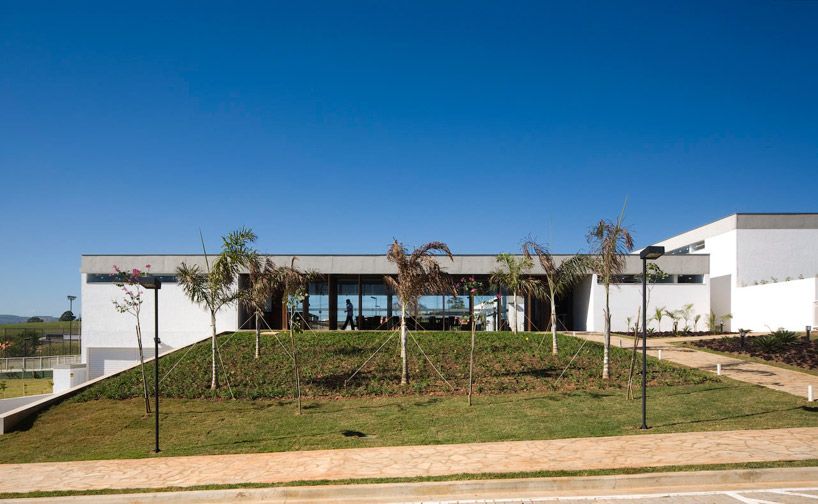

‘alphaville new esplanade’ by AUM arquitetos, votorantim, são paulo, brazil image © maíra acayaba all images courtesy AUM arquitetos
brazilian practice AUM arquitetos has completed ‘alphaville new esplanade’, a series of common spaces for a condominium complex in votorantim, são paulo, brazil. set into the topography, the facilities are divided into three different levels, a multipurpose and exercise room, an outdoor pool and sports and recreation fields. exposed concrete beams edge the varied rooflines, spanning and framing the glass-enclosed entries.
a smaller structure containing the changing rooms is bordered with muxarabi screens which line the northern facade. the ornate grid pattern creates an aesthetically pleasing filtered daylight which enters a perimeter corridor during the strong afternoon sun. each panel may be rotated on a central pivot, opening to the outdoors to introduce a cooling breeze. the concrete, stone glass and wood material palette are continuously used throughout the buildings creating a unified appearance.
pool deck image © maíra acayaba
pool deck image © maíra acayaba
multipurpose room image © maíra acayaba

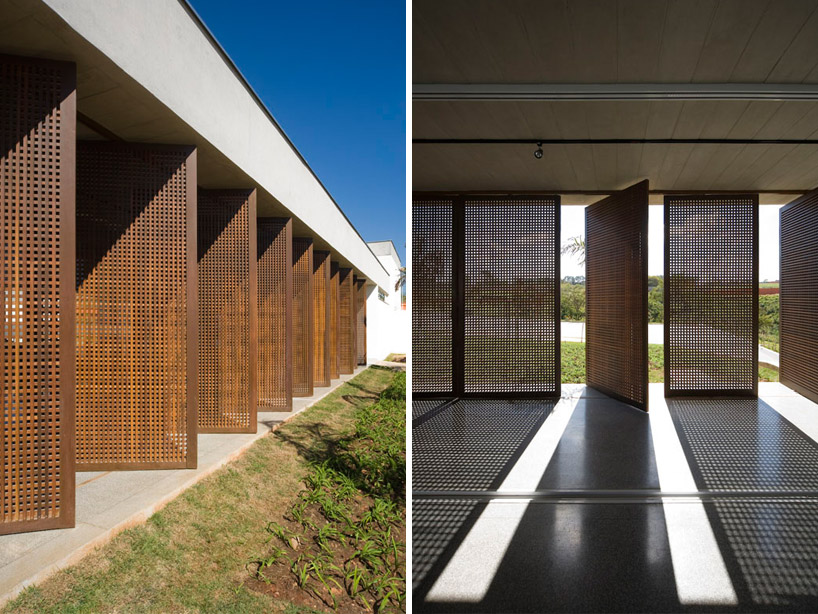

(left) facade comprised of muxarabi screens (right) screened views of the ladnscape images © maíra acayaba

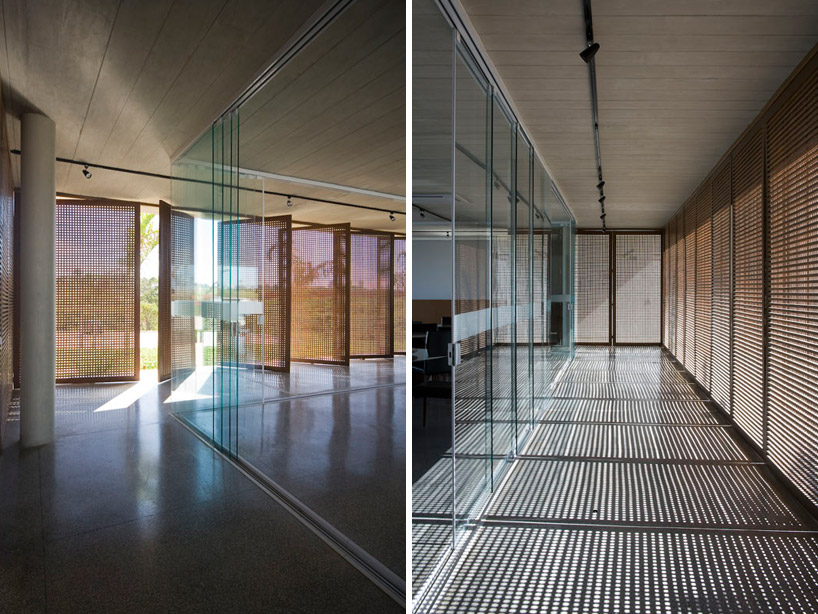

(left) screens may be rotated on a central pivot to open the facade to the outdoors (right) filtered sunlight within the perimeter corridor images © maíra acayaba
pool deck at night image © maíra acayaba
main entrance at night image © maíra acayaba
site plan
section
section
project info:
architecture: aum arquitetos – andré dias dantas, bruno bonesso vitorino, renato dalla marta (authors). ana maria montag, maíra baltrusch, aline pek, sarah mota prado, juliana teixeira e bruno conde location: votorantim, são paulo, brazil client: alphaville urbanismo main materials: concrete, stone, wood and glass constructed area: 830 sqm project year: 2009 – 2011 photographs: maíra acayaba
