NMS arquitectura completes bar do jardim latitude cafe + lounge in portugal
all images courtesy of NMS arquitectura







surrounded by high trees and lakeside pathways, the ‘bar do jardim latitude cafe + lounge’ by portuguese studio NMS arquitectura forms a strong connection to its varying outdoor landscape. located in jardim do calvário, penafiel in portugal, the site already contained an abandoned structure that needed to be completely refurbished. reestablishing an entrance to the existing playground, the volume fits in around large trees to help it blend into the garden.



NMS arquitectura completes bar do jardim latitude cafe + lounge in portugal

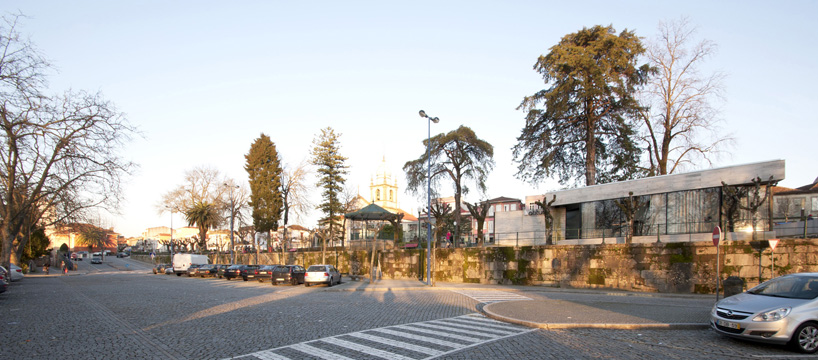

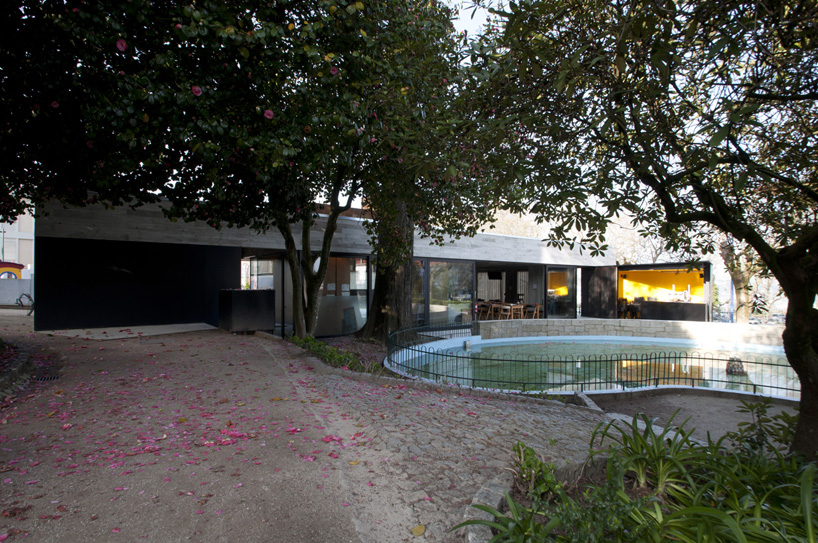

view showing the garden and the wall





the indoor area offers two distinct atmospheres that are directly related to the spatial qualities of its exterior – two opposing environments: the calm lake and the busy playground. designed as a wooden box with concrete beams, the choice of materials helps to create a series of different spaces, by overlapping glass panels and in between zones.

NMS-arquitectura-bar-do-jardim-latitude-cafe-designboom02

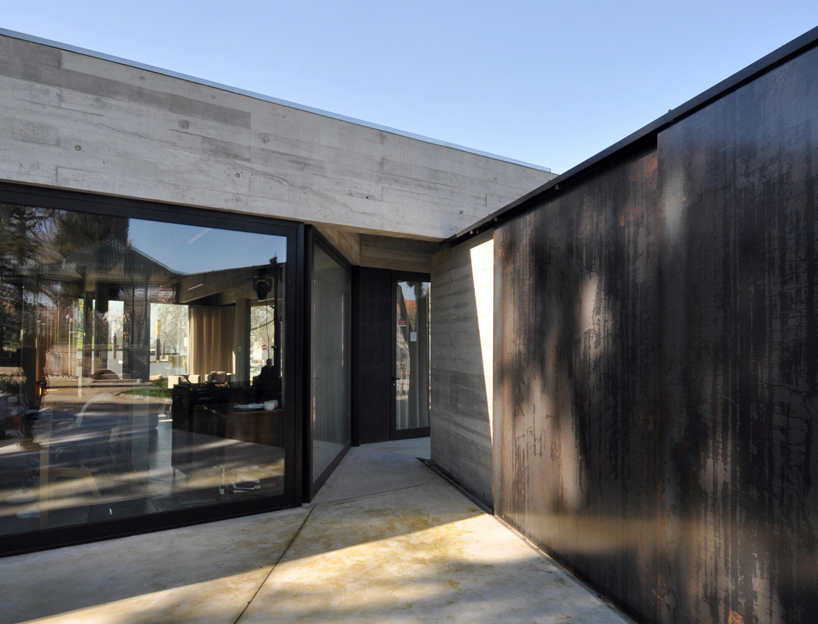

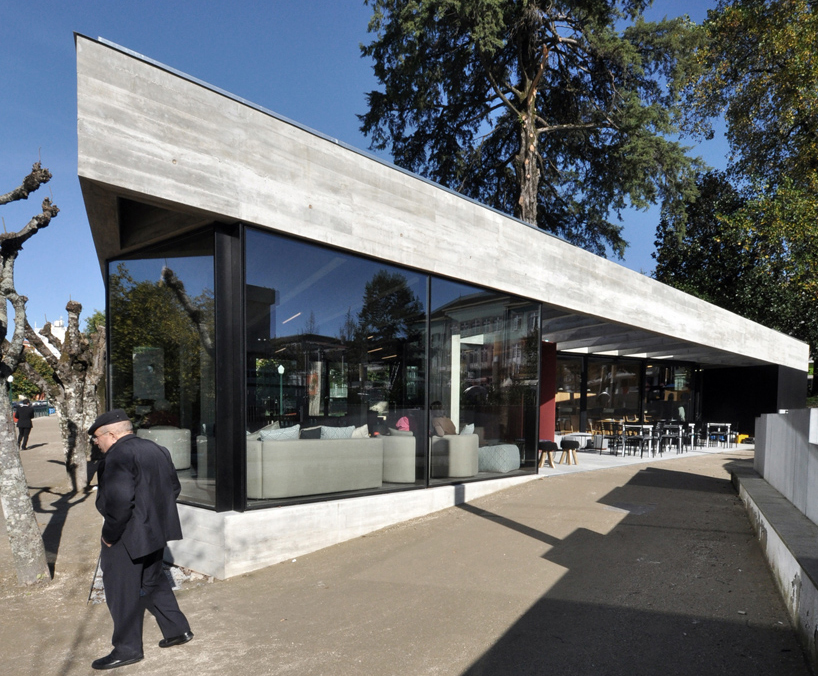

the entrance to the garden between the promenade and the lake



NMS arquitectura completes bar do jardim latitude cafe + lounge in portugal
view of the structural beam, black box, glass mirror and the yellow triangle volume



NMS-arquitectura-bar-do-jardim-latitude-cafe-designboom03

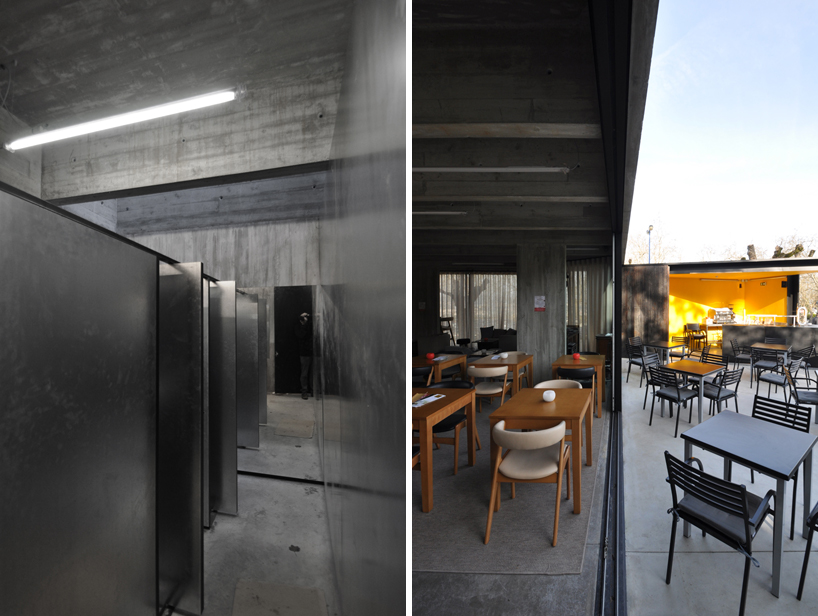

(left) the public toilets have galvanized steel and nude concrete walls on the interior
(right) the interior directly connects to the garden



NMS arquitectura completes bar do jardim latitude cafe + lounge in portugal

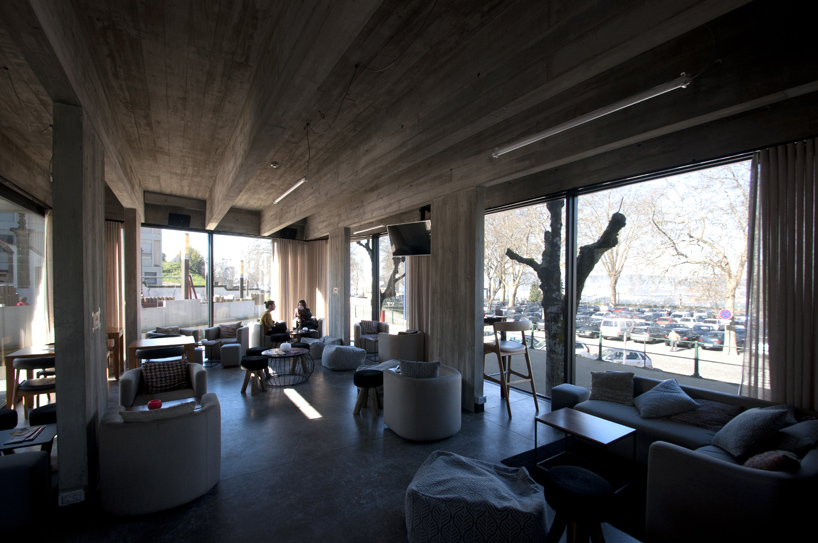

interior view of the lounge



NMS arquitectura completes bar do jardim latitude cafe + lounge in portugal

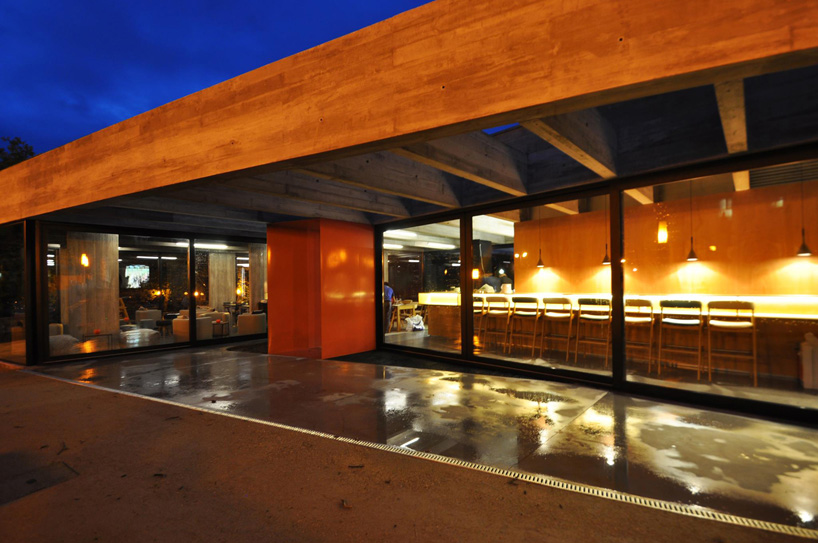

nighttime view of the main entrance



NMS arquitectura completes bar do jardim latitude cafe + lounge in portugal

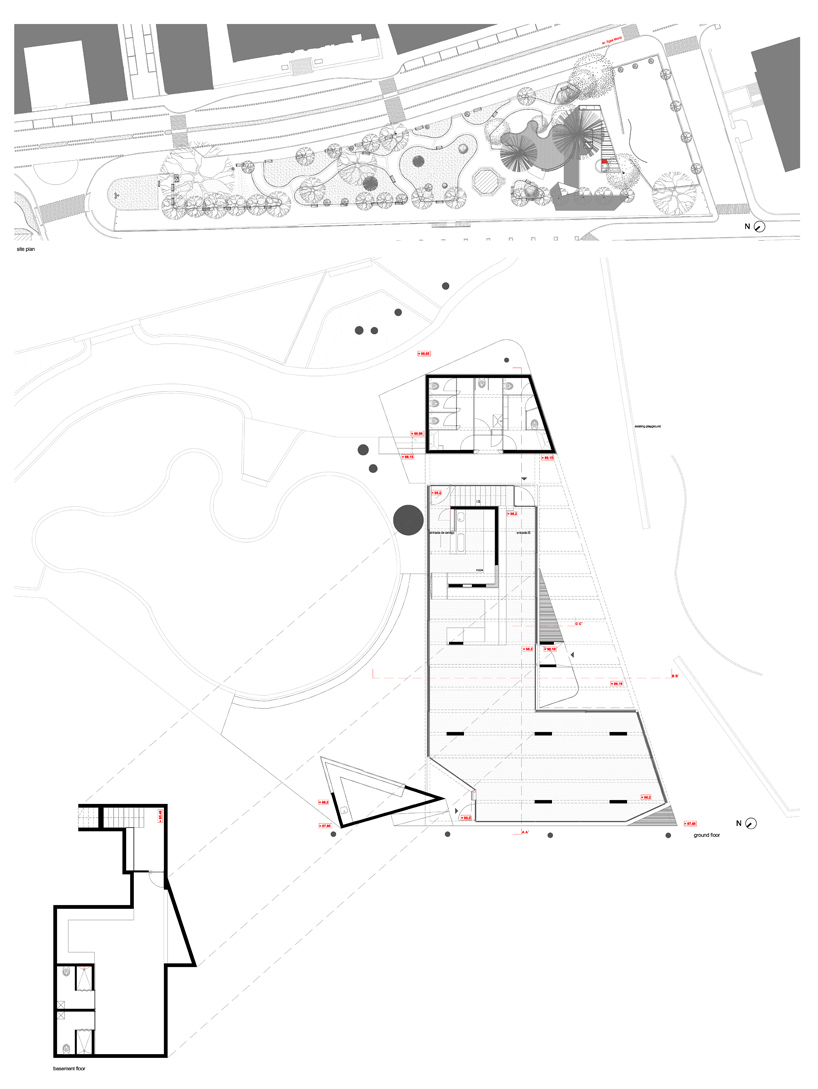

site plan, ground floor and basement plan





NMS arquitectura completes bar do jardim latitude cafe + lounge in portugal

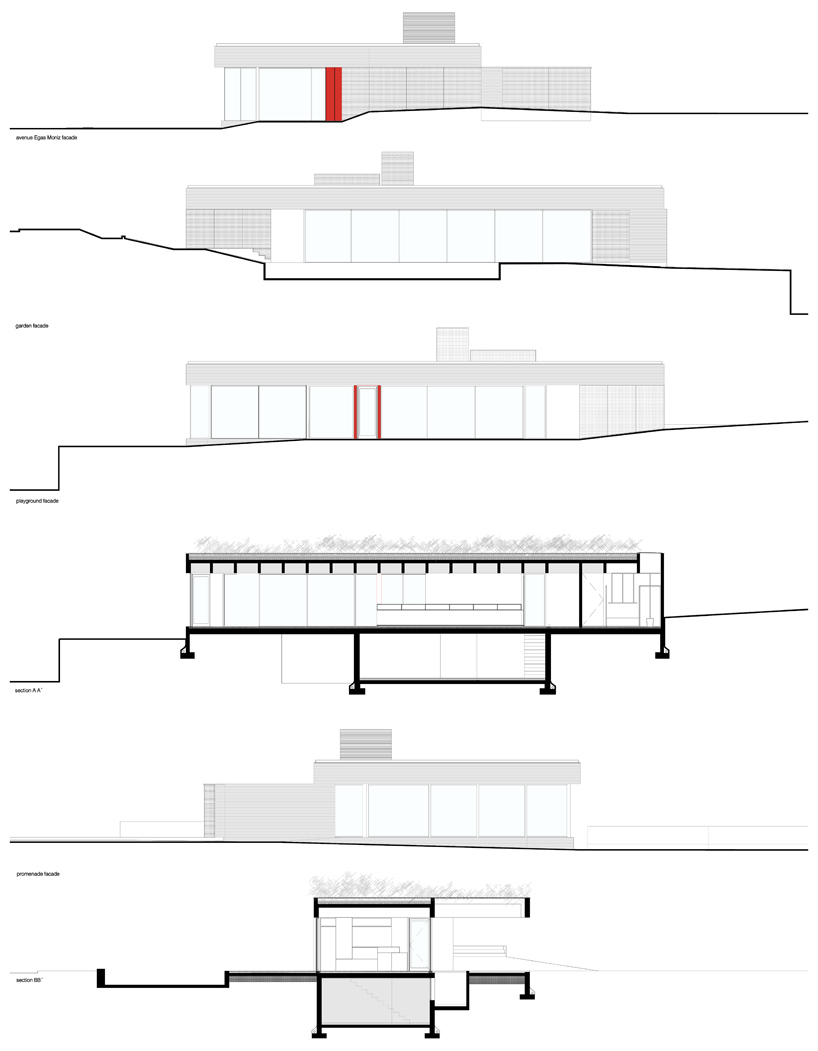

elevations and sections



NMS arquitectura completes bar do jardim latitude cafe + lounge in portugal

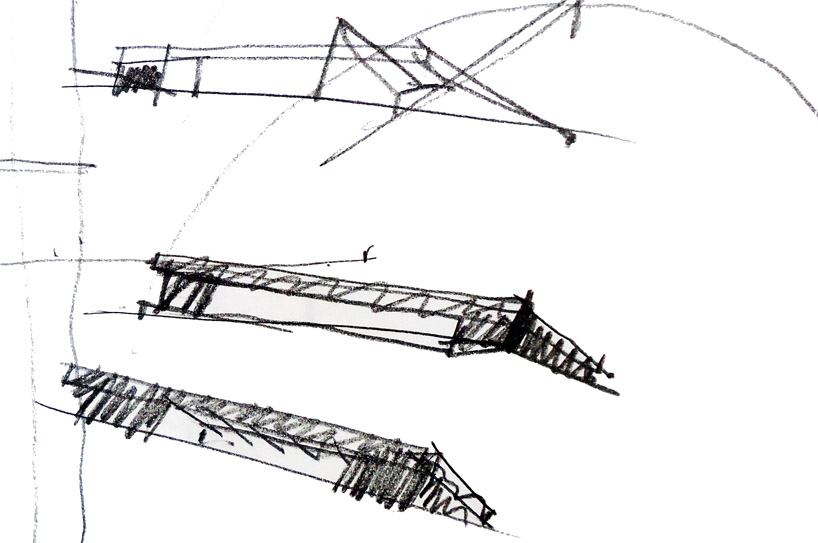

sketches



NMS arquitectura completes bar do jardim latitude cafe + lounge in portugal
model scale 1/100





project info:



type: bar and lounge
architectural design: nuno melo sousa
team: hugo cruz
landscape architects: xscapes_gonçalo andrade, mauro cardoso
structure: eng. bruno caetano
location: jardim do calvário, penafiel, portugal
built area: 230m2
project year: 2012
construction year: 2013
photography: nuno melo sousa
