kazuki moroe architects: house in gamagori

‘house in gamagori’ by kazuki moroe architects, gamagori, aichi prefecture, japanimage © hiroshi uedaall images courtesy of kazuki moroe architects

located on a corner site where circulation naturally flows in a concentric ring around the project, the ‘house in gamagori’ by japanese practicekazuki moroe architects replicates these conditions interpreted as a one-storey home with a circling roof that doubles over itself, slightly sloped to mirror the natural contours of the surrounding terrain. the central courtyard is the life of the home around which all program resides and opens to with large sliding glass doors. the north, where most traffic views the residence, is the highest structural element that quite literally blocks the public from the private interior, while the south contains a low profile to let in sunlight and open views of the nearby mountain. a warm material palette of soft white walls and two differently-toned woods make up the floor and ceiling and lend to a tranquil domestic environment. the subtle roof slope also relates to the program and the inhabitants, where the children reside on the lowest part and eventually work their way up the different functions until reaching the adult’s space at the highest point, looking over the parents’ house across the street.

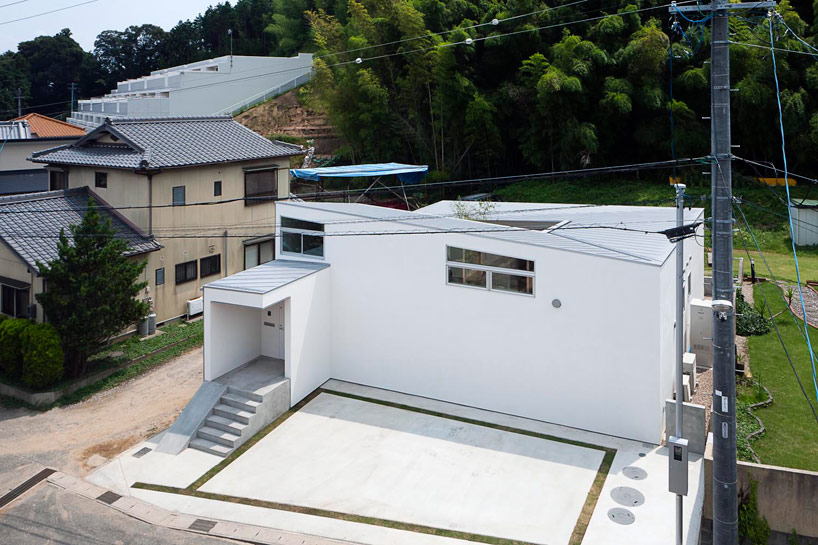

bird’s eye viewimage © hiroshi ueda

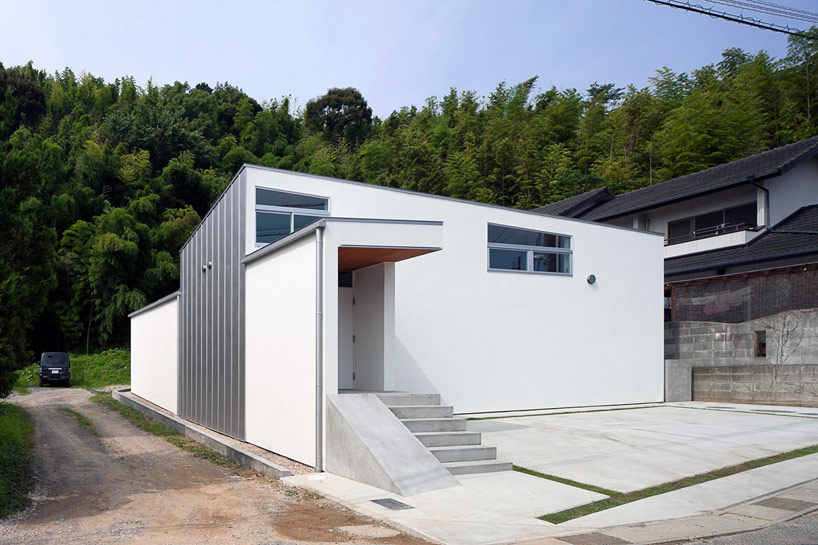

entry stairsimage © hiroshi ueda

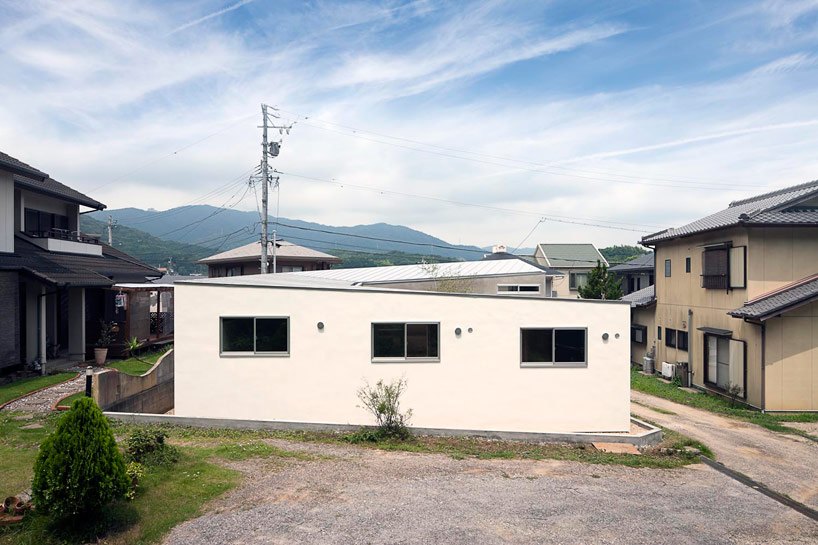

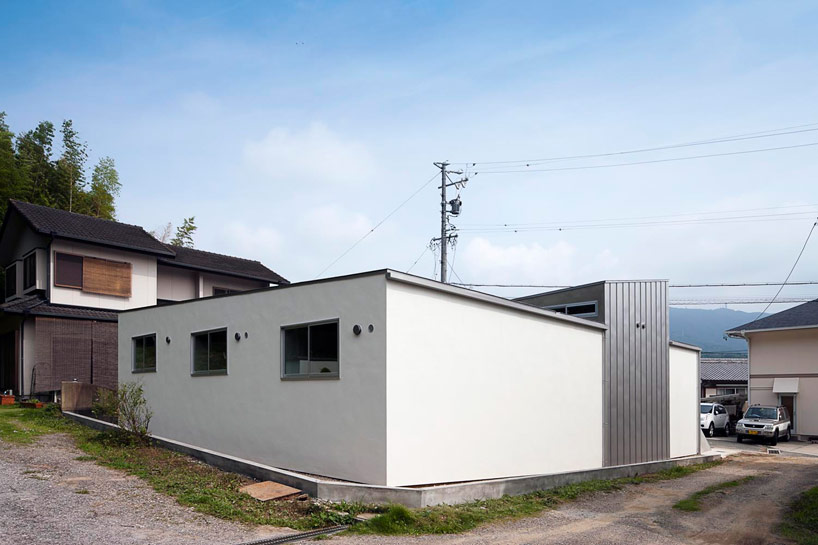

back of the lotimage © hiroshi ueda

rear elevationimage © hiroshi ueda

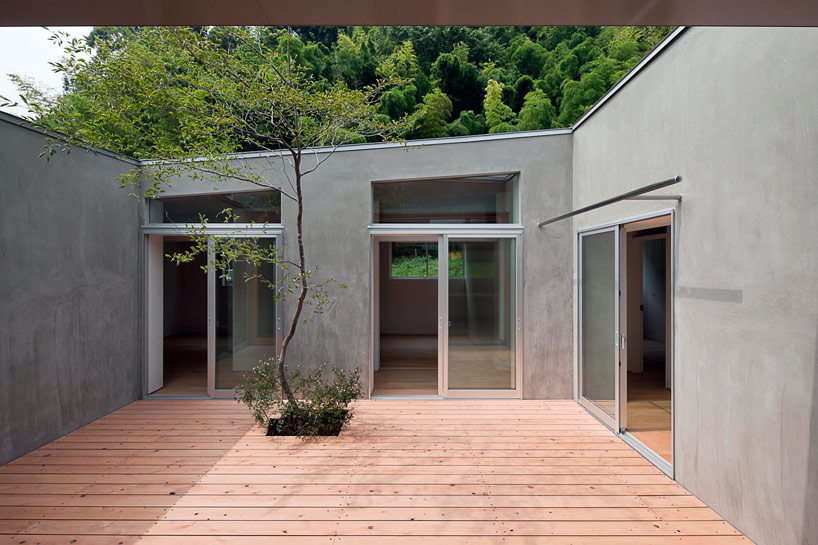

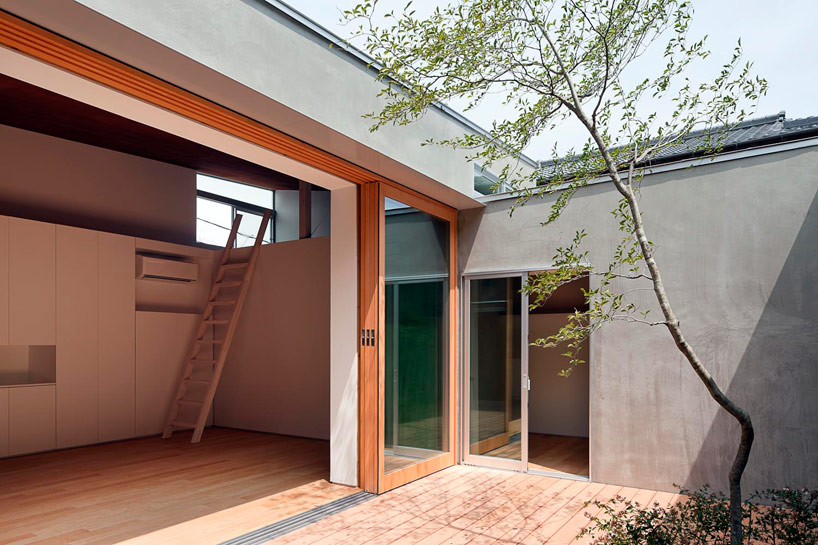

central courtyardimage © hiroshi ueda

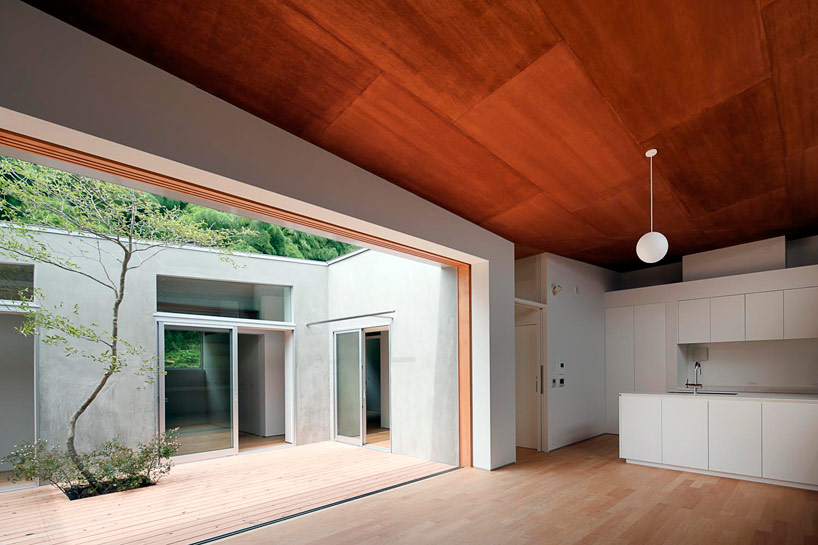

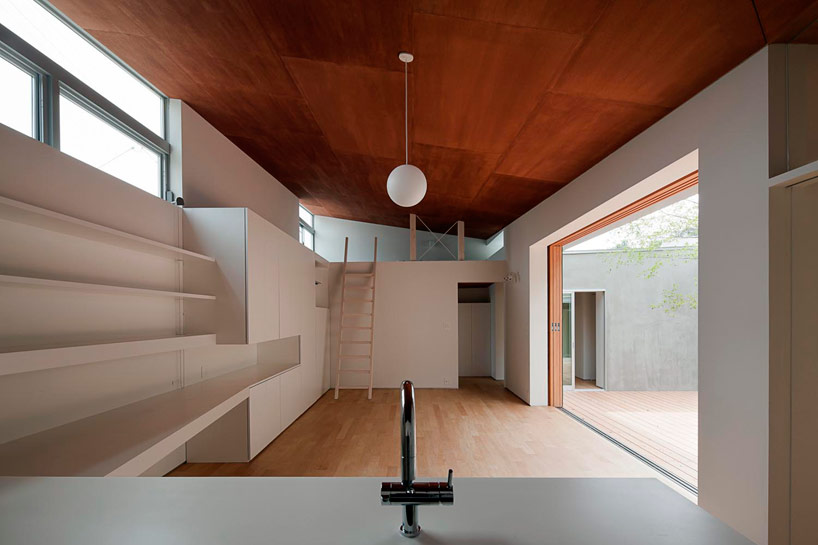

kitchen areaimage © hiroshi ueda

loft space on the highest point of the houseimage © hiroshi ueda

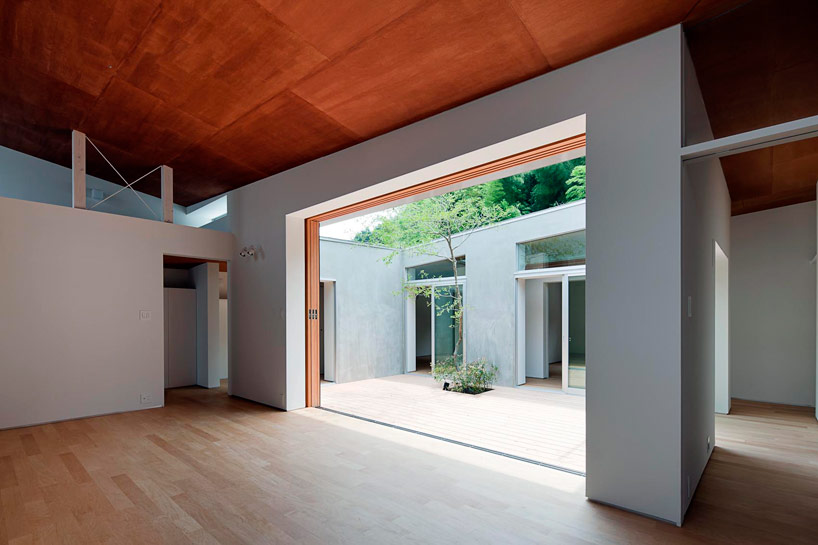

retractable glass doors open to the courtyardimage © hiroshi ueda

adult’s areaimage © hiroshi ueda

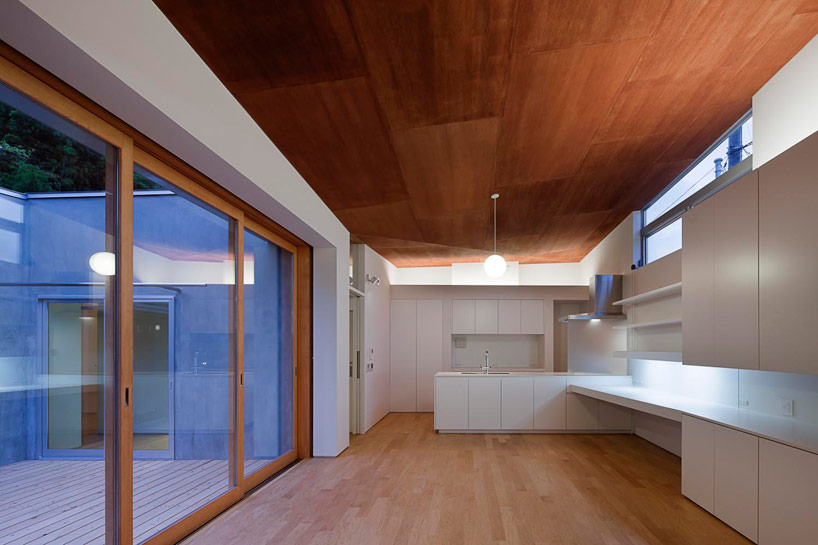

kitchenimage © hiroshi ueda

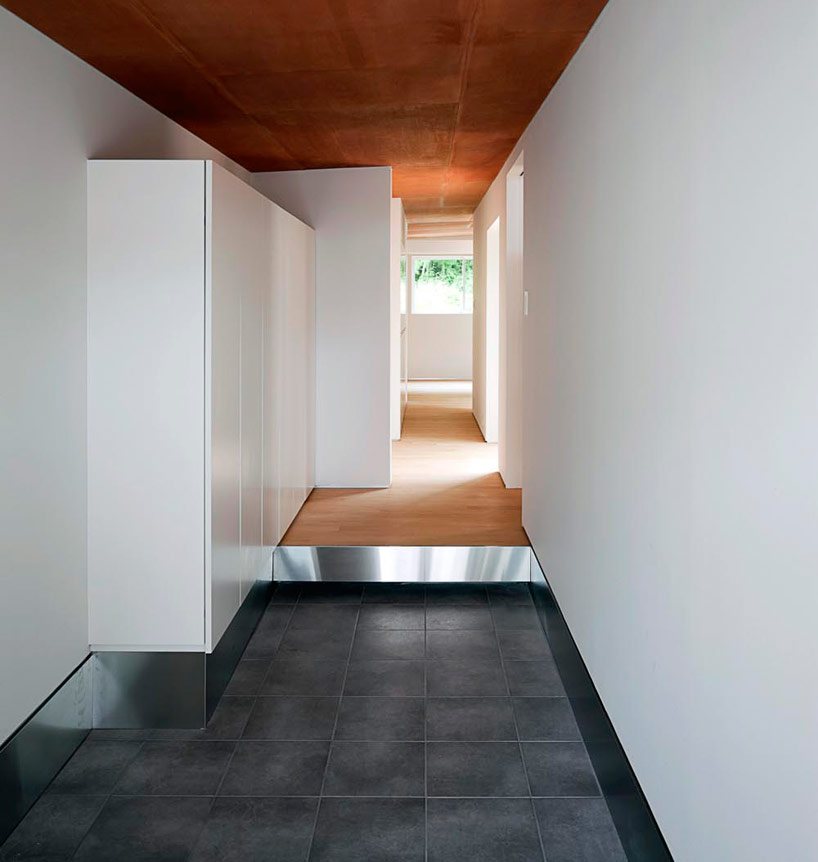

entry spaceimage © hiroshi ueda

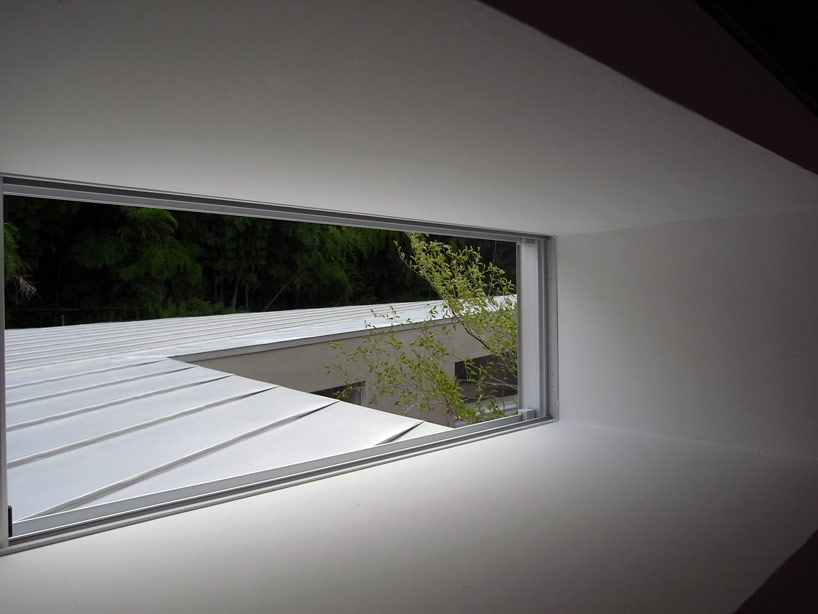

view onto the adjacent roofimage © hiroshi ueda

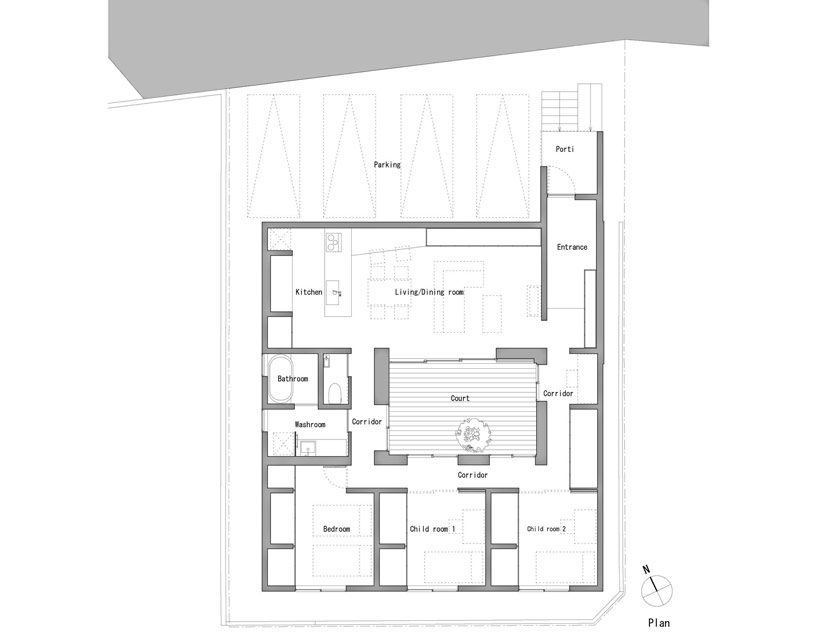

floor plan / level 0

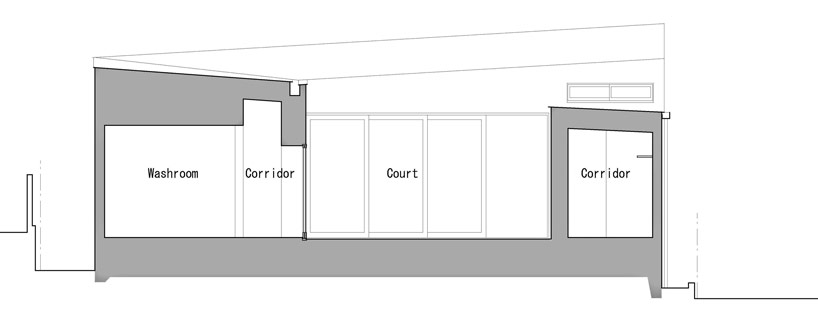

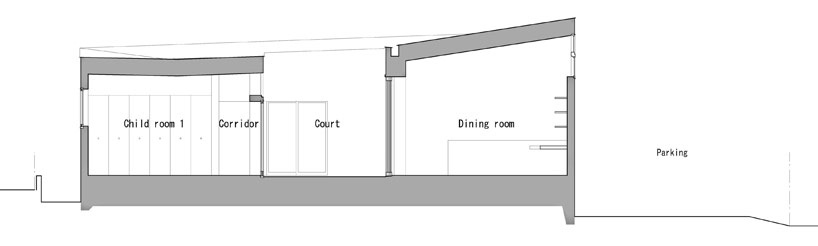

section

section

project info:

location: gamagori, aichi, japanprincipal use: private housedesign period: march.2010-august.2010construction period: october.2010-july.2011structure: wooden, 1 storysite area: 234.12sq.mbuilding area: 118.57sq.mtotal floor area: 114.86sq.mmax height: 5,029 mmstructural engineer: takashi takamizawageneral contractor: kinoshita construction co., ltd.photographs: hiroshi ueda
